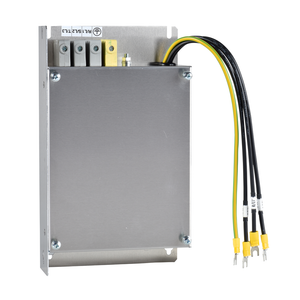

Schneider Electric VW3A31402 Emc Filter S1 S2 M3

(No reviews yet) Write a Review

Write a Review

Schneider Electric VW3A31402 Emc Filter S1 S2 M3

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

VW3A31402

UPC:

3389110689020

MPN:

Condition:

New

Warranty:

18 months

Ambient Air Temperature For Operation:

-10-50 °C

Tolerance:

0.1

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Phase:

three phase

Product Specific Application:

radio interference input filter

Ambient Air Temperature For Storage:

-25-70 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP20 || IP41 upper part)

Product Compatibility:

ATV312H018M3 || ATV312H037M3 || ATV312H055M3 || ATV312H075M3 || LXM05AD10M3X || LXM05BD10M3X || variable speed drive ATV320...C0.18 kW, 200...240 V three phase || variable speed drive ATV320...C0.37 kW, 200...240 V three phase || variable speed drive

Earth Leakage Current:

7 mA 50 Hz

Vibration Resistance:

1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6

Reach Free Of Svhc:

Yes

Mercury Free:

Yes

Line Rated Current:

0.291666666666667

Rohs Exemption Information:

Yes

Product Or Component Type:

EMC input filter

Toxic Heavy Metal Free:

Yes

Operating Altitude:

<= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m

China Rohs Regulation:

X

Standards:

IEC 61800-3

Net Weight:

0.65 kg || 0.55 kg

Network Rated Voltage:

200-240 V

Range Of Product:

Altivar

Thermal Losses:

2.6 W ATV31H018M3X

Range Compatibility:

Lexium 05 || Altivar 312 Solar || Altivar 312 || Altivar Machine ATV320

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Relative Humidity:

0-93 % IEC 68-2-3
