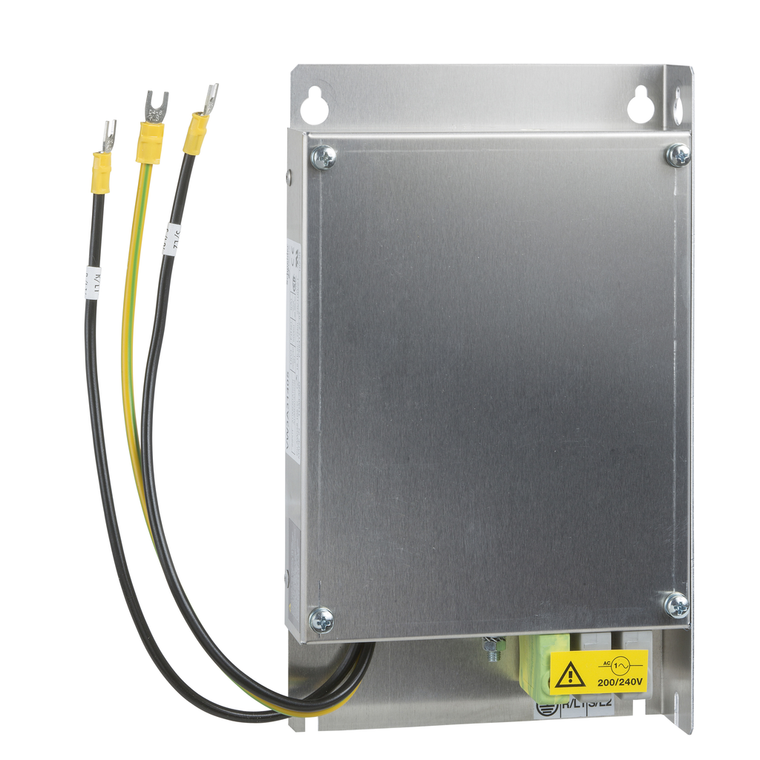

Schneider Electric VW3A31403 Emc Filter S6 M2

(No reviews yet) Write a Review

Write a Review

Schneider Electric VW3A31403 Emc Filter S6 M2

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

VW3A31403

UPC:

3389110689075

MPN:

Condition:

New

Phase:

single phase

China Rohs Regulation:

X

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Earth Leakage Current:

150 mA 50 Hz

Toxic Heavy Metal Free:

Yes

Product Or Component Type:

EMC input filter

Line Rated Current:

16 A

Network Rated Voltage:

200-240 V

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Of Product:

Altivar

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Thermal Losses:

6.9 W ATV31CU11M2

Operating Altitude:

<= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m

Ambient Air Temperature For Operation:

-10-50 °C

Standards:

IEC 61800-3

Net Weight:

0.775 kg

Range Compatibility:

Lexium 05 || Altivar 312 || Altivar 31C || Lexium 23 Plus || Altivar 312 Solar || Altivar Machine ATV320

Relative Humidity:

0-93 % IEC 68-2-3

Product Specific Application:

radio interference input filter

Tolerance:

0.1

Reach Free Of Svhc:

Yes

Vibration Resistance:

1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6

Ambient Air Temperature For Storage:

-25-70 °C

Mercury Free:

Yes

Ip Degree Of Protection:

IP20 || IP41 upper part)

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Compatibility:

servo drive LXM230.75 kW || servo drive LXM231 kW || servo drive LXM231.5 kW || ATV312HU11M2 || ATV312HU15M2 || ATV31CU11M2 || ATV31CU15M2 || LXM05AD17F1 || LXM05AD17M2 || LXM05BD17F1 || LXM05BD17M2 || LXM05CD17M2 || variable speed drive ATV320...C1.
