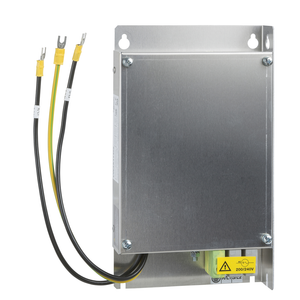

Schneider Electric VW3A31406 Emc Filter S7 M3-S7 N4
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1.650kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
- Product Or Component Type:
- EMC input filter
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Phase:
- three phase
- Tightening Torque:
- 1.8 N.m
- Operating Altitude:
- <= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
- Range Of Product:
- Altivar
- Network Rated Voltage:
- 380-500 V || 200-240 V
- Mercury Free:
- Yes
- Standards:
- IEC 61800-3
- Vibration Resistance:
- 1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
- Thermal Losses:
- 1 W ATV21HU30N4 || 3 W ATV21HU55N4 || 1.6 W ATV21HU40N4 || 15.8 W ATV31CU22N4 || 3.6 W ATV21HU30M3X || 6.2 W ATV21HU40M3X
- Toxic Heavy Metal Free:
- Yes
- Electrical Connection:
- terminal 10 mm² AWG 6
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP20 || IP41 upper part)
- Product Compatibility:
- servo drive LXM234.5 kW || servo drive LXM235.5 kW || ATV212HU30M3X || ATV212HU30N4 || ATV212HU40M3X || ATV212HU40N4 || ATV212HU55N4 || ATV31CU22N4 || ATV31CU30N4 || ATV31CU40N4 || LXM05AD22N4 || LXM05AD34N4 || LXM05AD42M3X || LXM05BD22N4 || LXM05BD3
- Tolerance:
- 0.1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Line Rated Current:
- 25 A
- Ambient Air Temperature For Operation:
- -10-50 °C
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Product Specific Application:
- radio interference input filter
- Range Compatibility:
- Altivar Machine ATV320 || Lexium 23 Plus || Altivar 212 || Altivar 31C || Lexium 05 || Altivar 312 || Altivar 312 Solar
- Warranty:
- 18 months
- Relative Humidity:
- 0-93 % IEC 68-2-3
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -25-70 °C
- Earth Leakage Current:
- 35 mA 50 Hz || 37 mA 480 V 60 Hz || 17.8 mA 480 V 60 Hz
- Net Weight:
- 1.65 kg || 1.35 kg
