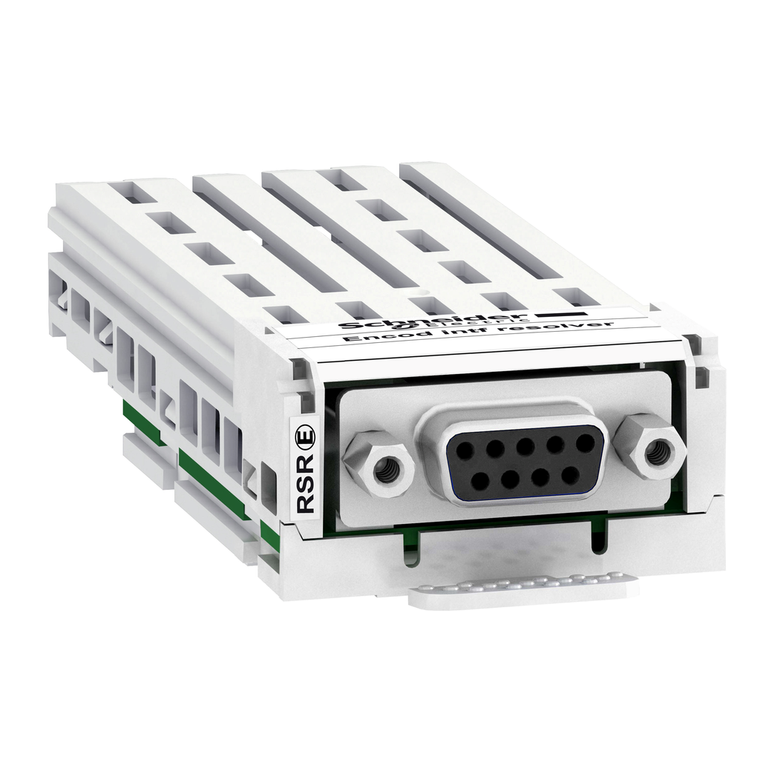

Schneider Electric VW3A3423 Resolver Interface Module Electronic Car

Schneider Electric VW3A3423 Resolver Interface Module Electronic Car

Schneider Electric
SKU:
VW3A3423
|
UPC:
3606485441276
Availability:
Contact us to confirm availability and lead times.
$161.68
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This resolver encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female SUB-D 9 connector.
Additional Information
Range Compatibility:
Altivar Process ATV900 || Altivar Process Modular || Altivar Machine ATV340
Rohs Exemption Information:
Yes
Maximum Operating Frequency:
12 kHz
Sustainable Offer Status:
Green Premium product
Protection Type:
overload protection || short-circuit protection
Connector Type:
1 female SUB-D 9
Pvc Free:
Yes
Maximum Supply Current:
0.05 A
China Rohs Regulation:
X
Maximum Cable Distance Between Devices:
100 m
Encoder Type:
resolver
Net Weight:
0.15 kg
Product Or Component Type:
encoder interface module
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Input Signal:
Sin+, Sin-, Cos+, Cos-, Temp+, Temp-
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental Disclosure:
ENVPEP2010009EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Altivar
Ratio:
3/10, 1/2, 3/4, 1
Output Signal:
Ref+, Ref-
Circularity Profile:
N/A
Mercury Free:
Yes
