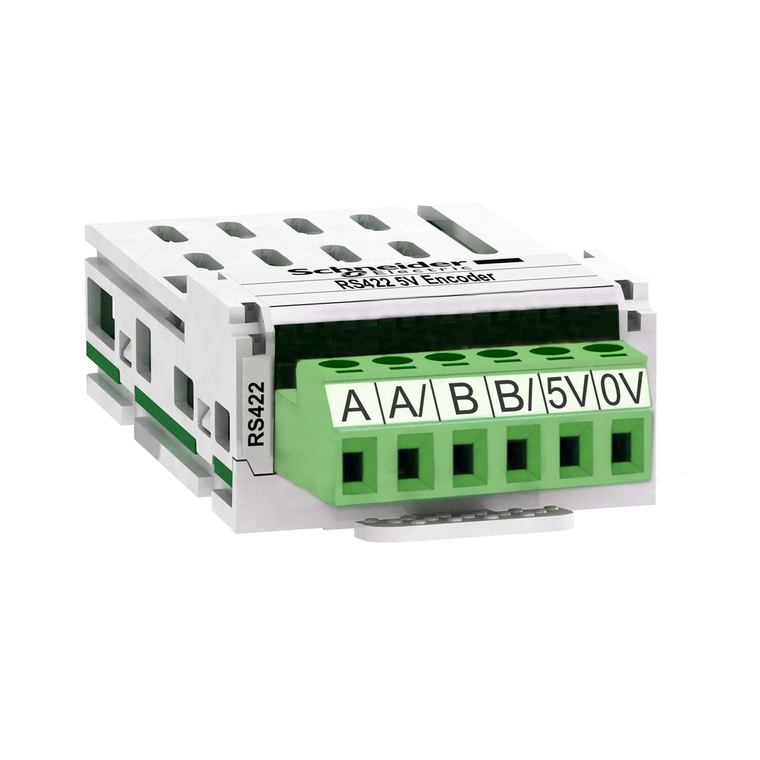

Schneider Electric VW3A3620 Interface Card Pti Atv32
SKU:
VW3A3620
UPC:
3.60648E+12
MPN:
Condition:
New
Input Signal:
TTL
Product Or Component Type:
encoder interface module
Net Weight:
0.3 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Product Compatibility:
ATV32 >= V1.8)
Maximum Operating Frequency:
250 kHz
Circularity Profile:
N/A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Protection Type:
overload protection || short-circuit protection
Electrical Connection:
terminal 1.5 mm² AWG 16), encoder, 200 mA
Number Of Pulses Per Revolution:
3600 ATV32
Range Of Product:
Altivar
Range Compatibility:
Altivar 32 || Altivar Machine ATV320
Environmental Disclosure:
ENVPEP2010018EN
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
