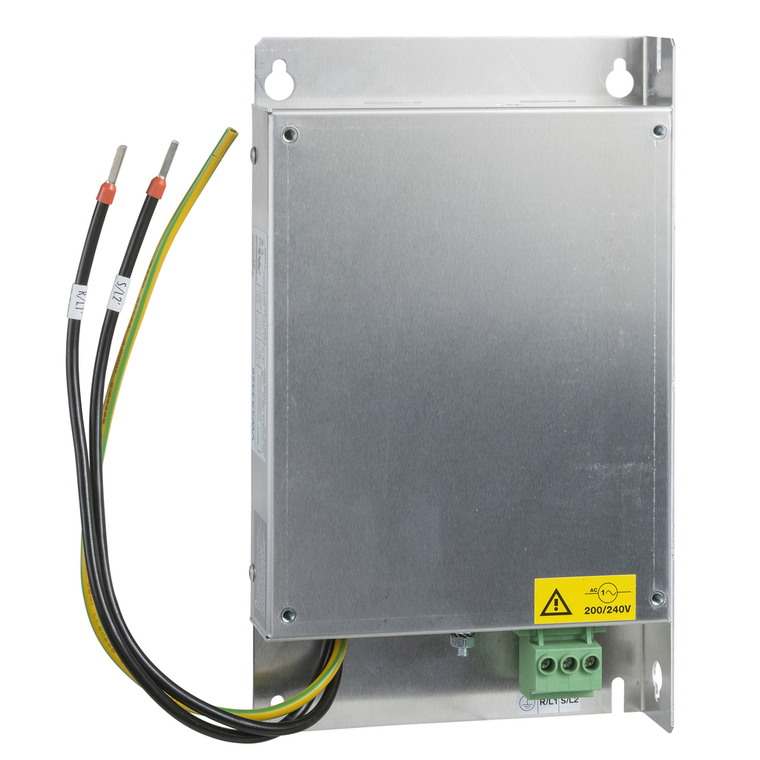

Schneider Electric VW3A4423 Emc Filter 25A 3Ph
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C2, C3. It weighs 0.775kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
- Product Compatibility:
- LXM28A || LXM32, three-phase, line current 14.6...18.1 A || variable speed drive ATV340 2.2 kW, 380...480 V || variable speed drive ATV340 3 kW, 380...480 V || variable speed drive ATV340 4 kW, 380...480 V || variable speed drive ATV340 5.5 kW, 380..
- China Rohs Regulation:
- X
- Mounting Location:
- at variable speed drive side
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Altivar || Lexium
- Network Rated Voltage:
- 380-500 V
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- EMC input filter
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Phase:
- three phase
- Warranty:
- 18 months
- Range Compatibility:
- Lexium 32 || Lexium 52 || Lexium 28 || Altivar Machine ATV340
- Net Weight:
- 1.35 kg
- Tolerance:
- 15...10 %
- Product Specific Application:
- radio interference input filter
- Reach Free Of Svhc:
- Yes
- Emc Filter Compatibility:
- type 023
- Line Rated Current:
- 25 A
- Thermal Losses:
- 15.8 W
- Maximum Cable Distance Between Devices:
- 20 m IEC 61800-3 category C1 || 50 m IEC 61800-3 category C2 || 100 m IEC 61800-3 category C3
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
