Schneider Electric VW3A4552 Ac Chokes 4Mh 10A

Schneider Electric VW3A4552 Ac Chokes 4Mh 10A

Schneider Electric
SKU:
VW3A4552
|
UPC:
3.38912E+12
Availability:
Contact us to confirm availability and lead times.
$1,723.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

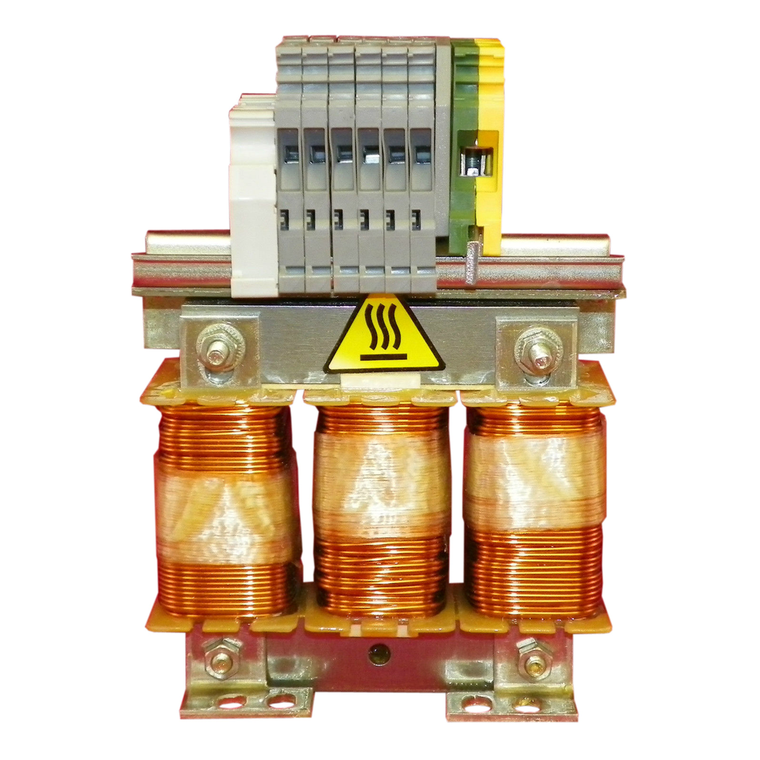

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 10A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 4mH. It weighs 3kg and its dimensions are, 130mm wide, 155mm high, 90mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Electrical Insulation Class:
class F
Rohs Exemption Information:
Yes
Thermal Losses:
65 W
Electrical Connection:
terminal 2.5 mm² / AWG 12, 0.4-0.6 N.m
Relative Humidity:
0-95 %
Line Rated Current:
0.416666666666667
Reach Free Of Svhc:
Yes
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Max Current:
1.65 x nominal current 60 s)
Value Of Inductance:
4 mH
Minimum Clearance Distance:
5.5 mm IEC 60664
Phase:
three phase
Standards:
EN 50178 || IEC 60076 (with HD398) || VDE 0160 level 1
China Rohs Regulation:
X
Net Weight:
3 kg
Device Application:
reduction of current harmonics || reduction of overvoltages at motor terminals
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Mercury Free:
Yes
Leakage Distance:
11.5 mm IEC 60664
Supply Frequency:
50...60 Hz
Ambient Air Temperature For Storage:
-25-70 °C
Range Of Product:
Altivar
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
choke IP00 || terminals IP20
Depth:
90 mm
Ambient Air Temperature For Operation:
45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)
Range Compatibility:
Altivar 61 || Altivar 312 Solar || Altivar 32 || Altivar Process ATV600 || Altivar 31C || Lexium 05 || Altivar 71 || Altivar Machine ATV340 || Altivar Machine ATV320 || Easy Altivar 310 || Altivar 12 || Lexium 62 || Altivar Process ATV900 || Altivar
Product Or Component Type:
line/motor choke
Product Compatibility:
variable speed drive ATV340 1.5 kW 380...480 V - line choke - 1 per drive || ATV31CU22N4 - line choke - 1 per drive || ATV31CU22N4 - motor choke - 1 per drive || ATV31CU30N4 - line choke - 1 per drive || ATV31CU30N4 - motor choke - 1 per drive || ATV
Operating Altitude:
<= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
Environmental Characteristic:
3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3
Height:
155 mm
Pollution Degree:
2 EN 50178
Vibration Resistance:
1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Maximum Voltage Drop At Rated Load:
0.05
Width:
130 mm
