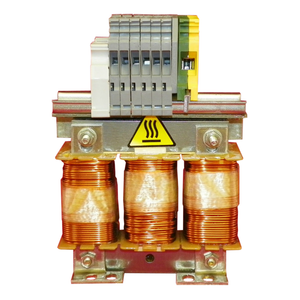

Schneider Electric VW3A4553 Ac Chokes 2Mh 17A

(No reviews yet) Write a Review

Write a Review

Schneider Electric VW3A4553 Ac Chokes 2Mh 17A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

VW3A4553

UPC:

3389118066038

MPN:

Condition:

New

Line Rated Current:

17 A

Device Application:

reduction of current harmonics || reduction of overvoltages at motor terminals

Product Or Component Type:

line/motor choke

Net Weight:

3.5 kg

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Operating Altitude:

<= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m

Product Compatibility:

variable speed drive ATV340 4 kW 380...480 V - line choke - 1 per drive || ATV31CU22M2 - motor choke - 1 per drive || ATV31CU55N4 - line choke - 1 per drive || ATV31CU55N4 - motor choke - 1 per drive || ATV31CU75N4 - line choke - 1 per drive || ATV61

Depth:

90 mm

Minimum Clearance Distance:

5.5 mm IEC 60664

Supply Frequency:

50...60 Hz

Width:

130 mm

Electrical Insulation Class:

class F

Reach Free Of Svhc:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Phase:

three phase

Value Of Inductance:

2 mH

Height:

155 mm

Max Current:

1.65 x nominal current 60 s)

Maximum Voltage Drop At Rated Load:

0.05

Environmental Characteristic:

3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3

Rohs Exemption Information:

Yes

Range Compatibility:

Altivar 61 || Altivar Process ATV900 || Lexium 05 || Altivar 312 Solar || Altivar Process ATV600 || Altivar 32 || Altivar 71 || Lexium 62 || Easy Altivar 310 || Altivar 12 || Altivar 31C || Lexium 52 || Altivar 312 || Lexium 32 || Altivar Machine ATV

Range Of Product:

Altivar

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Relative Humidity:

0-95 %

Standards:

VDE 0160 level 1 || EN 50178 || IEC 60076 (with HD398)

Thermal Losses:

75 W

Leakage Distance:

11.5 mm IEC 60664

Electrical Connection:

terminal 6 mm² / AWG 8, 0.8-1 N.m

Ambient Air Temperature For Operation:

45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)

Ip Degree Of Protection:

choke IP00 || terminals IP20

China Rohs Regulation:

X

Mercury Free:

Yes

Warranty:

18 months

Ambient Air Temperature For Storage:

-25-70 °C

Pollution Degree:

2 EN 50178
