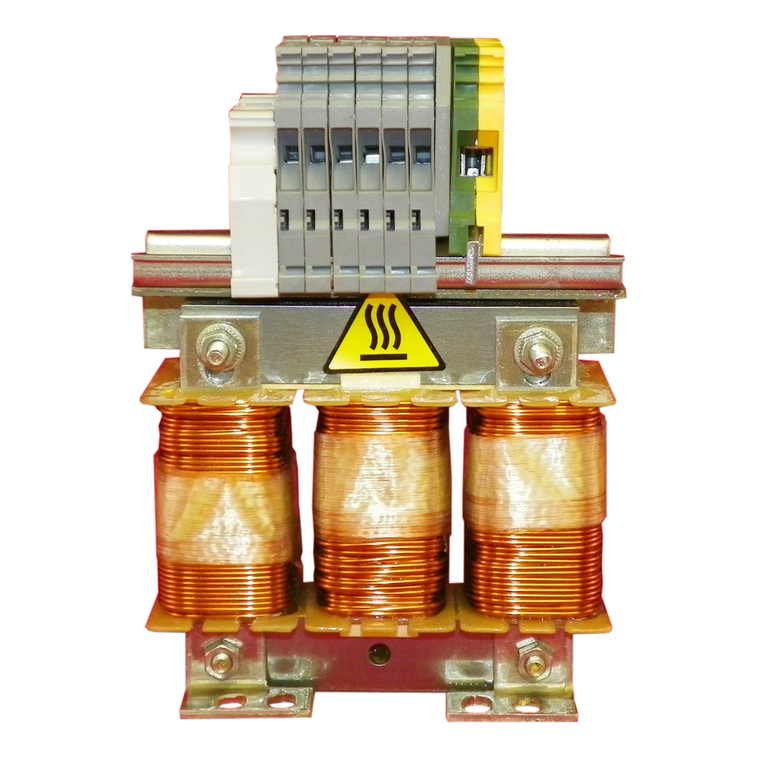

Schneider Electric VW3A4555 Ac Chokes 0,5Mh 60A

Schneider Electric VW3A4555 Ac Chokes 0,5Mh 60A

Schneider Electric
SKU:
VW3A4555
|
UPC:
3.38912E+12
Availability:
Contact us to confirm availability and lead times.
$3,127.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.5mH. It weighs 11kg and its dimensions are, 180mm wide, 210mm high, 165mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
Additional Information
Depth:
165 mm
Phase:
three phase
Leakage Distance:
11.5 mm IEC 60664
Relative Humidity:
0-95 %
Electrical Connection:
terminal 35 mm² / AWG 0, 2.5-3 N.m
Mercury Free:
Yes
Device Application:
reduction of overvoltages at motor terminals || reduction of current harmonics
Max Current:
1.65 x nominal current 60 s)
Thermal Losses:
94 W
Product Or Component Type:
line/motor choke
Supply Frequency:
50...60 Hz
Net Weight:
11 kg
Line Rated Current:
60 A
Electrical Insulation Class:
class F
Warranty:
18 months
Product Compatibility:
LXM32MD85N4 - line choke - 1 per drive || LXM32MC10N4 - line choke - 1 per drive || variable speed drive ATV340 15 kW 380...480 V - line choke - 1 per drive || ATV61CD15N4 - motor choke - 1 per drive || ATV61HD11M3X - line choke - 1 per drive || ATV6
Rohs Exemption Information:
Yes
Range Of Product:
Altivar
Vibration Resistance:
1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Range Compatibility:
Altivar 32 || Altivar Machine ATV340 || Lexium 62 || Altivar 71 || Altivar Machine ATV320 || Altivar 312 || Altivar Process ATV900 || Altivar Process ATV600 || Altivar 61 || Lexium 32 || Easy Altivar 310
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height:
210 mm
Value Of Inductance:
0.5 mH
Width:
180 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Ambient Air Temperature For Operation:
45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)
Reach Free Of Svhc:
Yes
Toxic Heavy Metal Free:
Yes
Ambient Air Temperature For Storage:
-25-70 °C
Maximum Voltage Drop At Rated Load:
0.05
Environmental Characteristic:
3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3
Minimum Clearance Distance:
5.5 mm IEC 60664
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Operating Altitude:
<= 3280.84 ft (1000 m) without current derating || <= 3280.84 ft (1000 m) without derating
Pollution Degree:
2 EN 50178
Standards:
EN 50178 || IEC 60076 (with HD398) || VDE 0160 level 1
Ip Degree Of Protection:
choke IP00 || terminals IP10
