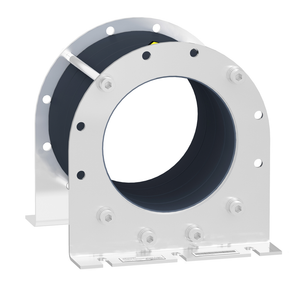

Schneider Electric VW3A5503 Ouput Common Mode Filter

Schneider Electric VW3A5503 Ouput Common Mode Filter

Schneider Electric
SKU:
VW3A5503
|
UPC:
3606485435787
$1,523.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
common mode filter for bearing current reduction, 120µH
Additional Information
Toxic Heavy Metal Free:
Yes
Switching Frequency:
<= 10 kHz
China Rohs Regulation:
X
Product Compatibility:
variable speed drive ATV630 wall mount, 15-90 kW, 380...480 V || variable speed drive ATV650 wall mount, 15-90 kW, 380...480 V || variable speed drive ATV930 wall mount, 15-90 kW, 380...480 V || variable speed drive ATV950 wall mount, 15-90 kW, 380..
Mechanical Robustness:
shocks class 3M4 IEC 60721-3-3 || vibrations class 3M4 IEC 60721-3-3
Width:
127.5 mm
Ambient Air Temperature For Storage:
-40-70 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
common mode output filter
Saturation Current:
2.2 A
Net Weight:
2.19 kg
Maximum Motor Cable Length:
150 m(unshielded cable)15-90 kW 380...480 V 1 || 150 m(shielded cable)7.5-11 kW 200...240 V 1 || 300 m(shielded cable)7.5-11 kW 200...240 V 2 || 300 m(shielded cable)15-45 kW 200...240 V 1 VW3A5504 || 500 m(unshielded cable)7.5-11 kW 200...240 V 2 ||
Maximum Output Frequency:
100 Hz
Ambient Air Temperature For Operation:
-15-60 °C
Range Compatibility:
Altivar Process ATV900 || Altivar Process ATV600
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height:
161 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Diameter:
76 mm 3-phase cable inside || 76 mm PE cable outside
Rohs Exemption Information:
Yes
Value Of Inductance:
120 µH
Reach Free Of Svhc:
Yes
Mercury Free:
Yes
Depth:
127.5 mm
Electrical Insulation Class:
class I
Relative Humidity:
5-95 % without condensation
