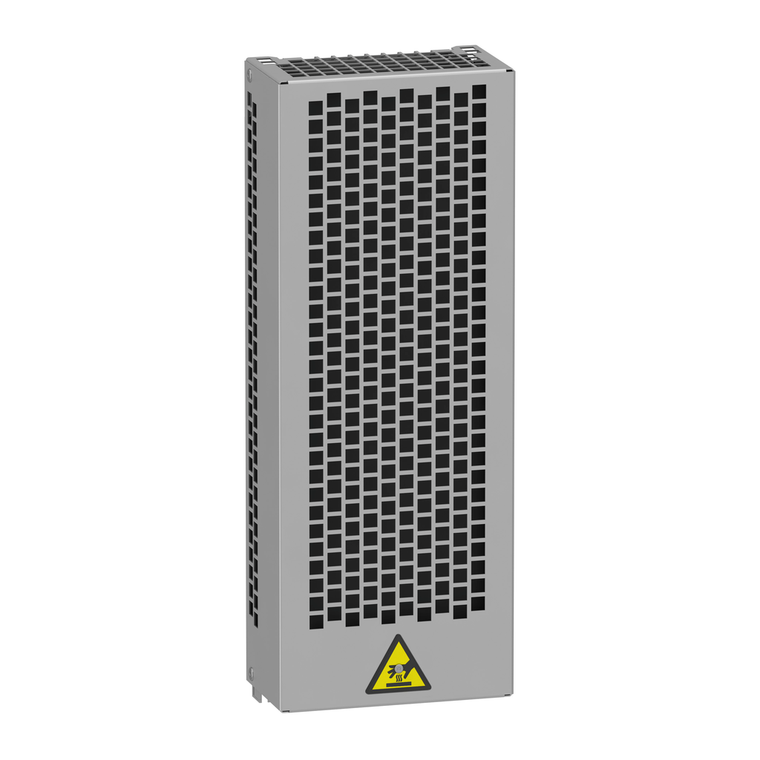

Schneider Electric VW3A7741 Braking Resistor 60 Ohms 0,5 Kw Ip20

Schneider Electric VW3A7741 Braking Resistor 60 Ohms 0,5 Kw Ip20

Schneider Electric
SKU:
VW3A7741
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$483.56
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 60Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 4.5kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Additional Information
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
X
Duty Cycle:
severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s c
Reach Free Of Svhc:
Yes
Electrical Connection:
terminal <= 10 mm² / AWG 8 drive
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Width:
175 mm
Ambient Air Temperature For Operation:
0-50 °C
Height:
465 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Average Power Available:
0.5 kW 50 °C
Mercury Free:
Yes
Product Or Component Type:
braking resistor
Net Weight:
3.8 kg
Ambient Air Temperature For Storage:
-25-70 °C
Protection Type:
thermal protection via drive
Ip Degree Of Protection:
IP20
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Product Compatibility:
variable speed drive ATV930 wall mount 5.5 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 7.5 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 5.5 kW 380...480 V medium cycle || variable speed drive ATV950
Ohmic Value:
60 Ohm
Depth:
100 mm
Range Compatibility:
Altivar Process ATV900 || Altivar Machine ATV340
