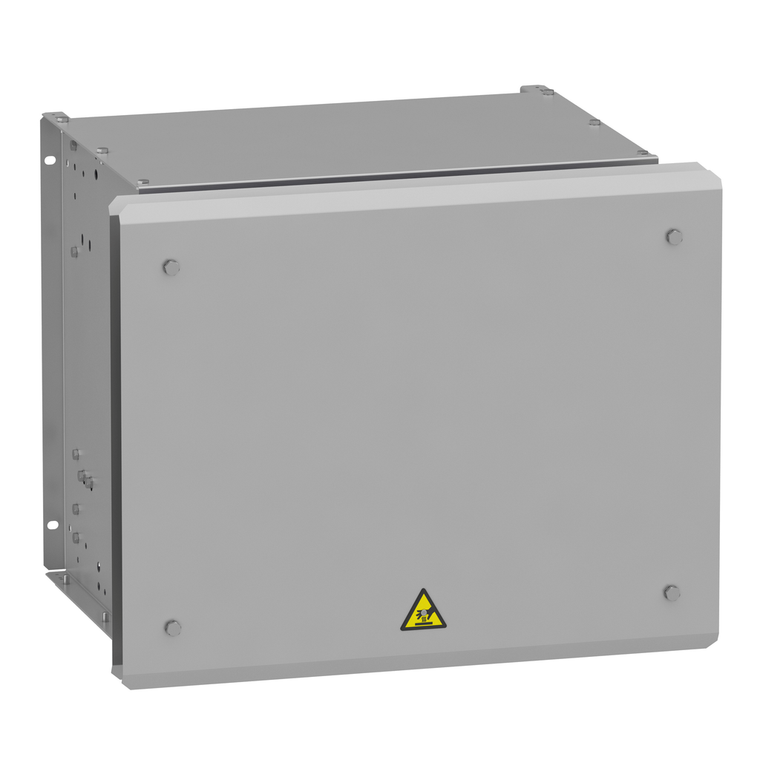

Schneider Electric VW3A7745 Braking Resistor 8 Ohms 3,8 Kw Ip23

(No reviews yet) Write a Review

Write a Review

Schneider Electric VW3A7745 Braking Resistor 8 Ohms 3,8 Kw Ip23

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

VW3A7745

UPC:

3606480802386

MPN:

Condition:

New

Electrical Connection:

terminal <= 2.5 mm² / AWG 12 temperature control switch || M8 bar wire drive

China Rohs Regulation:

X

Net Weight:

25.5 kg

Product Compatibility:

variable speed drive ATV930 wall mount 55 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 55 kW 380...480 V medium cycle || variable speed drive ATV340 45 kW 380...480 V medium cycle || variable speed drive ATV930 45 kW 500...69

Average Power Available:

3.8 kW 50 °C

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Depth:

650 mm

Range Compatibility:

Altivar Machine ATV340 || Altivar Process ATV900

Product Or Component Type:

braking resistor

Height:

485 mm

Protection Type:

thermal protection via drive or temperature control switch 120 °C

Duty Cycle:

medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Toxic Heavy Metal Free:

Yes

[Ue] Rated Operational Voltage:

24 V DC || 250 V AC

Ambient Air Temperature For Operation:

0-50 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP23

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Storage:

-25-70 °C

Width:

540 mm

Ohmic Value:

8 Ohm
