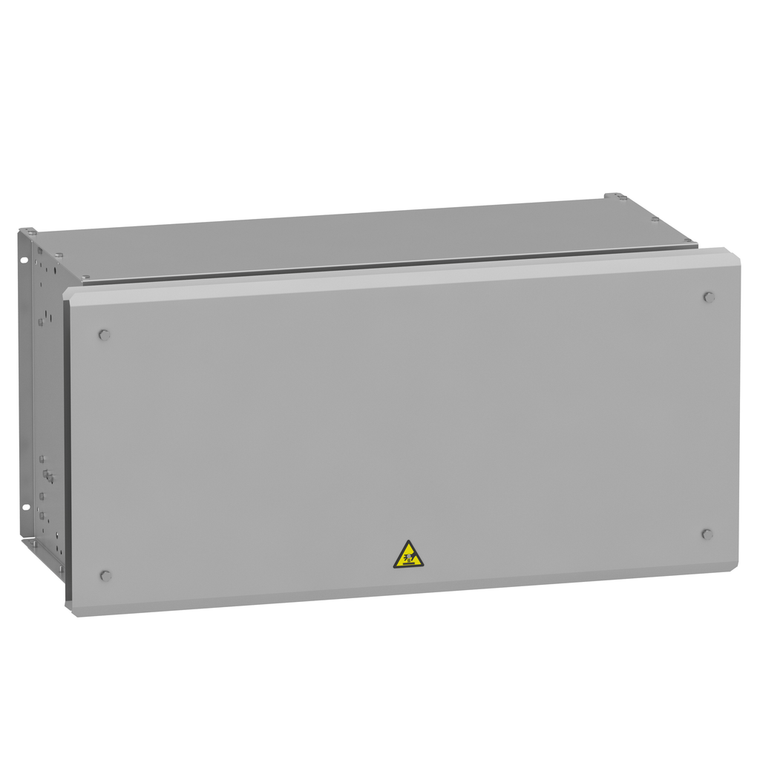

Schneider Electric VW3A7747 Braking Resistor 2,5 Ohms 11 Kw Ip23

(No reviews yet) Write a Review

Write a Review

Schneider Electric VW3A7747 Braking Resistor 2,5 Ohms 11 Kw Ip23

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

VW3A7747

UPC:

3.60648E+12

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-25-70 °C

Width:

540 mm

Electrical Connection:

terminal <= 2.5 mm² / AWG 12 temperature control switch || M12 bar wire drive

Average Power Available:

11 kW 50 °C

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Operation:

0-50 °C

Ip Degree Of Protection:

IP23

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Product Compatibility:

variable speed drive ATV930 wall mount 110 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 132 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 160 kW 380...480 V medium cycle

Protection Type:

thermal protection via drive or temperature control switch 120 °C

Height:

485 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

braking resistor

Ohmic Value:

2.5 Ohm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of Svhc:

Yes

Net Weight:

48.5 kg

Mercury Free:

Yes

Range Compatibility:

Altivar Process ATV900

Rohs Exemption Information:

Yes

Depth:

1060 mm

[Ue] Rated Operational Voltage:

24 V DC || 250 V AC

Duty Cycle:

medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
