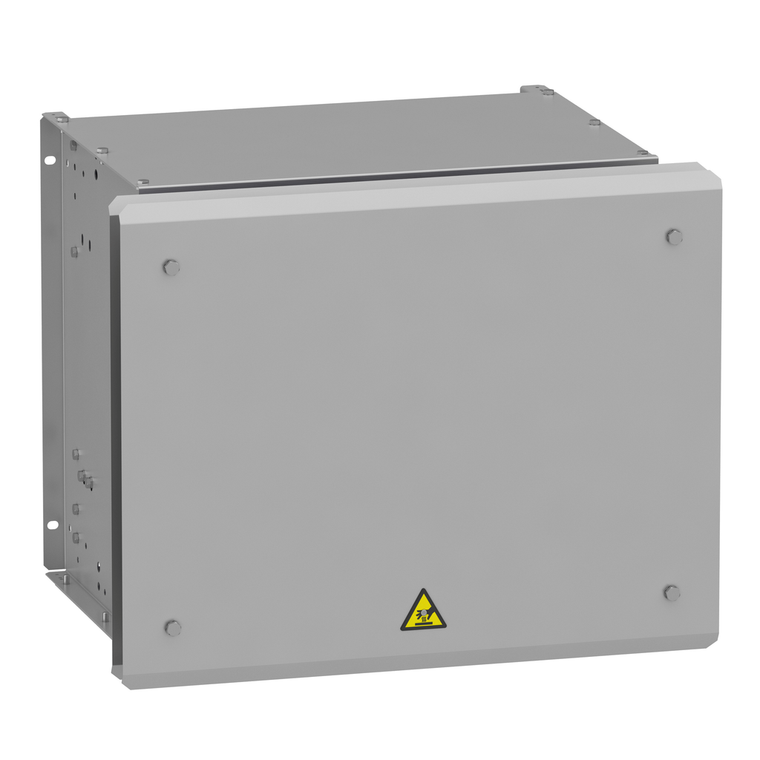

Schneider Electric VW3A7748 Braking Resistor 1,4 Ohms 5,1 Kw Ip23
SKU:
VW3A7748
UPC:
3.60648E+12
MPN:
Condition:
New
Depth:
650 mm
Protection Type:
thermal protection via drive or temperature control switch 120 °C
China Rohs Regulation:
X
Height:
485 mm
Mercury Free:
Yes
Ip Degree Of Protection:
IP23
Electrical Connection:
terminal <= 2.5 mm² / AWG 12 temperature control switch || M12 bar wire drive
Ambient Air Temperature For Operation:
0-50 °C
Rohs Exemption Information:
Yes
Ohmic Value:
1.4 Ohm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Width:
540 mm
Toxic Heavy Metal Free:
Yes
Average Power Available:
5.1 kW 50 °C
[Ue] Rated Operational Voltage:
24 V DC || 250 V AC
Product Or Component Type:
braking resistor
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
29 kg
Duty Cycle:
medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
Ambient Air Temperature For Storage:
-25-70 °C
Product Compatibility:
variable speed drive ATV930 wall mount 55 kW 200...240 V medium cycle || variable speed drive ATV930 wall mount 75 kW 200...240 V medium cycle || variable speed drive ATV930 wall mount 220 kW 380...480 V light cycle || variable speed drive ATV930 wal
Reach Regulation:
Free of Substances of Very High Concern above the threshold
