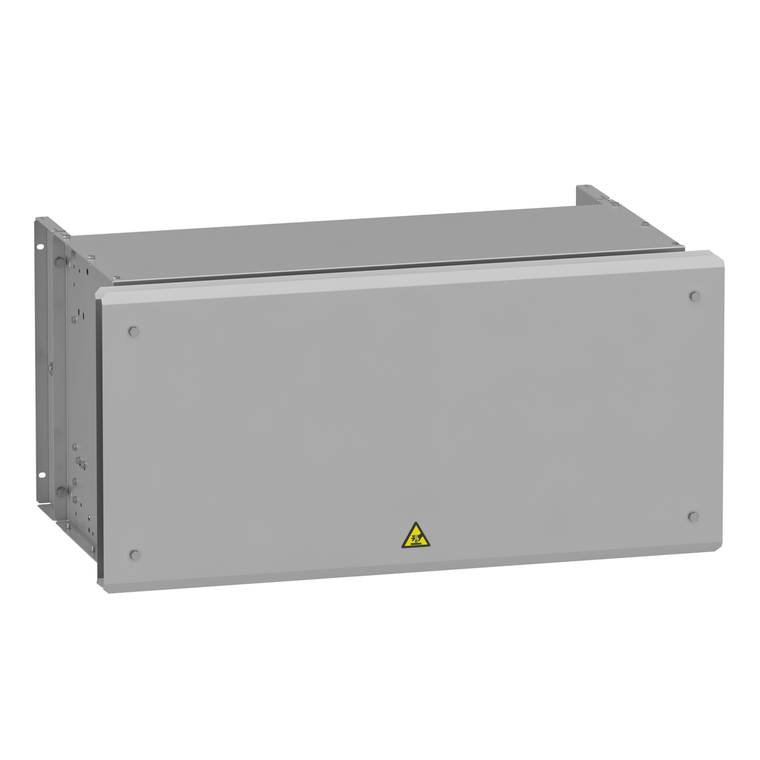

Schneider Electric VW3A7753 Braking Resistor 16 Ohms 14 Kw Ip23

Schneider Electric VW3A7753 Braking Resistor 16 Ohms 14 Kw Ip23

Schneider Electric
SKU:
VW3A7753
|
UPC:
3.61E+12
Availability:
Contact us to confirm availability and lead times.
$2,460.03
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 47kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Additional Information
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ohmic Value:
16 Ohm
Product Or Component Type:
braking resistor
Ambient Air Temperature For Storage:
-25-70 °C
Width:
540 mm
Range Compatibility:
Altivar Machine ATV340 || Altivar Process ATV900
Height:
605 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Compatibility:
variable speed drive ATV930 wall mount 18.5 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 22 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 30 kW 380...480 V severe cycle || variable speed drive ATV930 w
Rohs Exemption Information:
Yes
Electrical Connection:
terminal <= 2.5 mm² / AWG 12 temperature control switch || M6 bar wire drive
Net Weight:
48.5 kg
Protection Type:
thermal protection via drive or temperature control switch 120 °C
Reach Free Of Svhc:
Yes
Average Power Available:
14 kW 50 °C
[Ue] Rated Operational Voltage:
24 V DC || 250 V AC
Toxic Heavy Metal Free:
Yes
Depth:
1060 mm
Duty Cycle:
severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
Ambient Air Temperature For Operation:
0-50 °C
China Rohs Regulation:
X
Mercury Free:
Yes
Ip Degree Of Protection:
IP23
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
