Schneider Electric VW3A7754 Braking Resistor 10 Ohms 19 Kw Ip23

Schneider Electric VW3A7754 Braking Resistor 10 Ohms 19 Kw Ip23

Schneider Electric
SKU:
VW3A7754
|
UPC:
3.61E+12
Availability:
Contact us to confirm availability and lead times.
$2,962.23
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

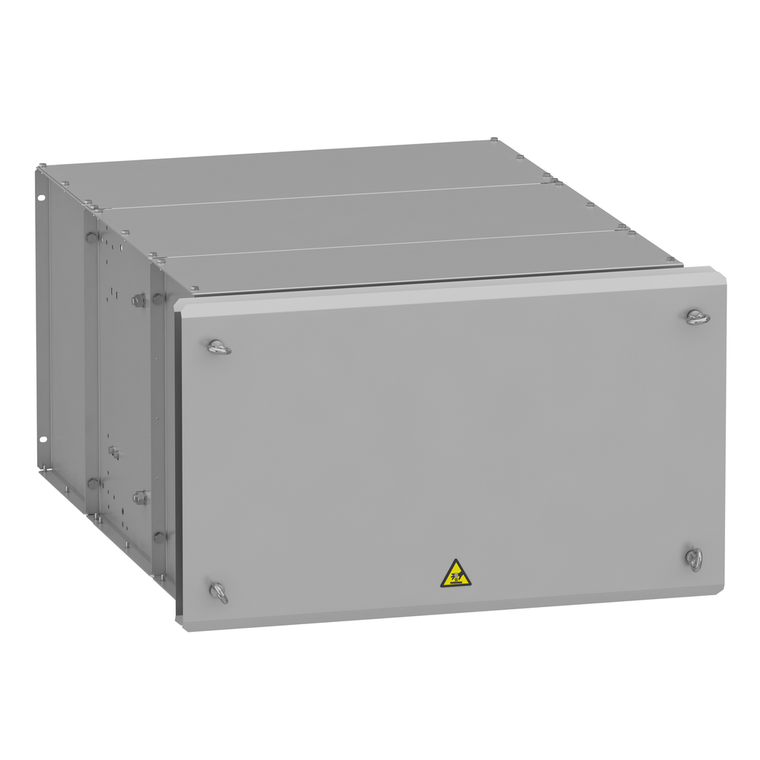

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 10Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 67kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Additional Information
Protection Type:
thermal protection via drive or temperature control switch 120 °C
China Rohs Regulation:
X
Duty Cycle:
severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
Product Or Component Type:
braking resistor
Range Compatibility:
Altivar Machine ATV340 || Altivar Process ATV900
Ip Degree Of Protection:
IP23
Rohs Exemption Information:
Yes
[Ue] Rated Operational Voltage:
24 V DC || 250 V AC
Depth:
860 mm
Ambient Air Temperature For Operation:
0-50 °C
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Ohmic Value:
10 Ohm
Height:
1035 mm
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Average Power Available:
19 kW 50 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Storage:
-25-70 °C
Electrical Connection:
terminal <= 2.5 mm² / AWG 12 temperature control switch || M12 bar wire drive
Net Weight:
71 kg
Width:
540 mm
Product Compatibility:
variable speed drive ATV930 wall mount 37 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 45 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 90 kW 380...480 V severe cycle || variable speed drive ATV950 wal
