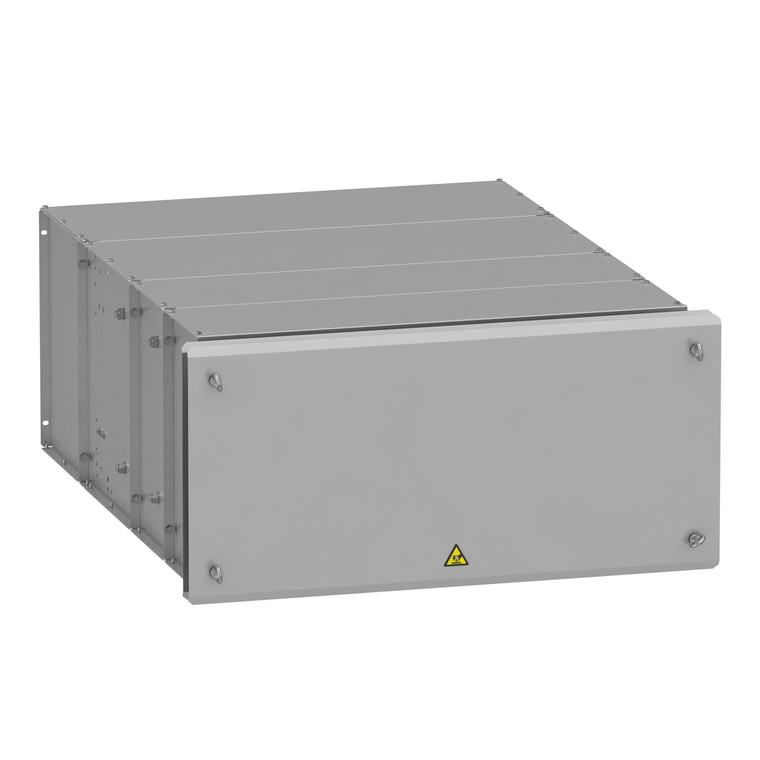

Schneider Electric VW3A7757 Braking Resistor 1,4 Ohms 29 Kw Ip23
SKU:
VW3A7757
UPC:
3.60648E+12
MPN:
Condition:
New
Product Or Component Type:
braking resistor
Protection Type:
thermal protection via drive or temperature control switch 120 °C
Mercury Free:
Yes
China Rohs Regulation:
X
Net Weight:
121 kg
Reach Free Of Svhc:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Electrical Connection:
terminal <= 2.5 mm² / AWG 12 temperature control switch || M12 bar wire drive
Product Compatibility:
variable speed drive ATV930 wall mount 55 kW 200...240 V severe cycle || variable speed drive ATV930 wall mount 75 kW 200...240 V severe cycle || variable speed drive ATV930 wall mount 220 kW 380...480 V medium cycle || variable speed drive ATV930 wa
Depth:
1060 mm
Ip Degree Of Protection:
IP23
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Duty Cycle:
severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle || severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s
Ambient Air Temperature For Operation:
0-50 °C
Height:
1285 mm
[Ue] Rated Operational Voltage:
24 V DC || 250 V AC
Width:
540 mm
Toxic Heavy Metal Free:
Yes
Range Compatibility:
Altivar Process ATV900
Ohmic Value:
1.4 Ohm
Ambient Air Temperature For Storage:
-25-70 °C
Average Power Available:
29 kW 50 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
