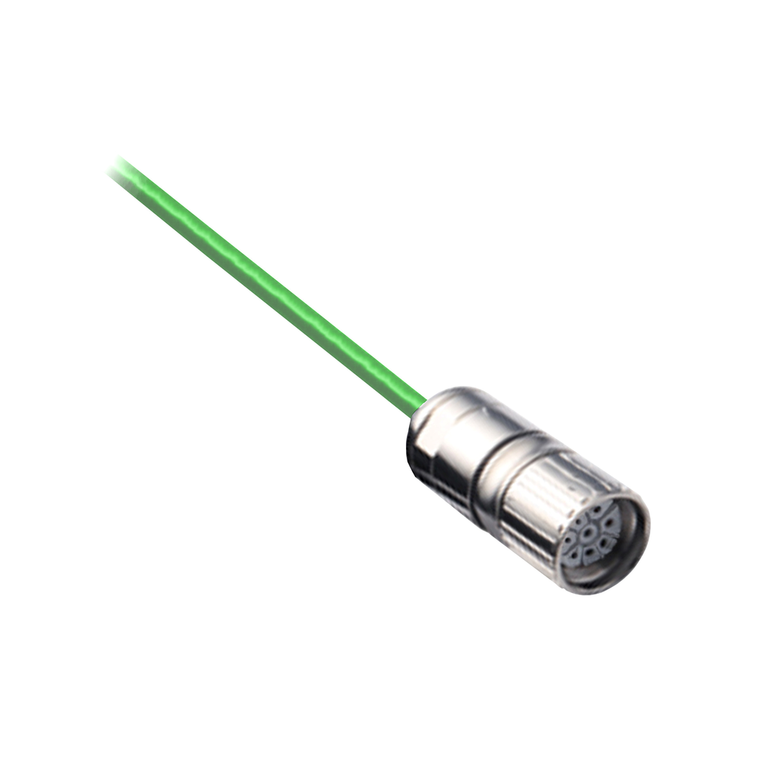

Schneider Electric VW3E1143R050 Motor Cable Sh To Lxm, M23, 1,5Mm2, Ul,
Schneider Electric
$161.36
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VW3E1143R050 Motor Cable Sh To Lxm, M23, 1,5Mm2, Ul,
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Lexium 52 & Motors range, an offer of connection accessories for power supply. This power cable is an accessory for Axis 1 STS40/60/80. The length of this cable is 5m. It is furnished with M23 industrial connector for electrical connection. The cable composition is 1.5mm². It is used between servo motor BDH, BSH and servo drive. The connector is made of metal. It weighs 1.367kg. This range is compatible with Lexium 52, Lexium 62 and Lexium STS. The product is compatible with LXM 62 servo drive, LXM 52 servo drive, SH3055.P and SH3070.P/M. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Cable Length:
- 5 m
- Product Or Component Type:
- cable
- Range Of Product:
- PacDrive 3
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1409020EN
- Net Weight:
- 1.367 kg
- Accessory / Separate Part Destination:
- power supply || holding brake || temperature sensor
- Range Compatibility:
- Lexium 52 || Lexium 62 || Lexium STS
- Product Compatibility:
- LXM 62 servo drive || LXM 52 servo drive || SH3055.P... || SH3070.P/M... || SH3100.P/M... || SH31401M... || MH3070.P... || MH3100.P...
- Mercury Free:
- Yes
- Material:
- metal
- Cable Cross Section:
- 1.5-1.5 mm²
- Environmental Disclosure:
- ENVPEP1409020EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Connector Type:
- M23
- Catalog:
- View
- Datasheet:
- View
