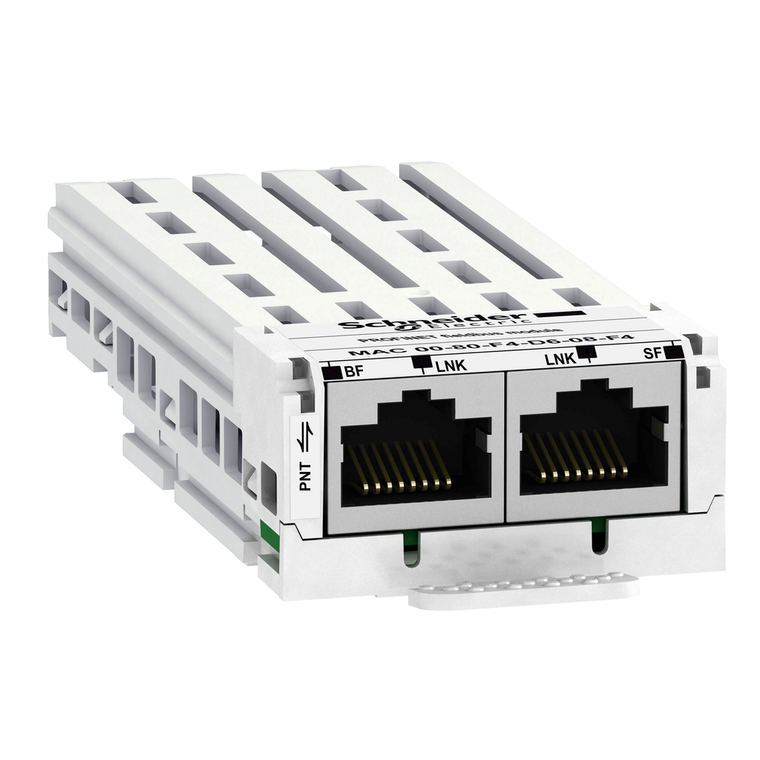

Schneider Electric VW3M3308 Profinet Io Lxm32

Schneider Electric VW3M3308 Profinet Io Lxm32

Schneider Electric
SKU:
VW3M3308
|
UPC:
3606480909801
Availability:
Contact us to confirm availability and lead times.
$347.91
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The ProfNet fieldbus module is communication accessory of servo drives. It supports 100Mbits 100m transmission rate, 256 number of addresses with ProfNet communication port protocol. It is furnished with 2 RJ45 connectors for electrical connection. It weighs 0.45kg. This product is compatible with Lexium 32M servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.
Additional Information
Rohs Exemption Information:
Yes
Number Of Addresses:
256-256
Electrical Connection:
2 connectors RJ45
Product Compatibility:
Lexium 32M
Accessory / Separate Part Category:
communication accessories
Transmission Rate:
10 Mbits 100 m || 100 Mbits 100 m
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Net Weight:
0.45 kg
Mercury Free:
Yes
Communication Port Protocol:
PROFINET
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
communication module
Circularity Profile:
ENVEOLI1407005EN
China Rohs Regulation:
X
Range Compatibility:
Lexium 32
Accessory / Separate Part Destination:
servo drive
Accessory / Separate Part Type:
card
Local Signalling:
for communication status 4 LEDs (green/red)
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP1407005EN
Datasheet:
View
