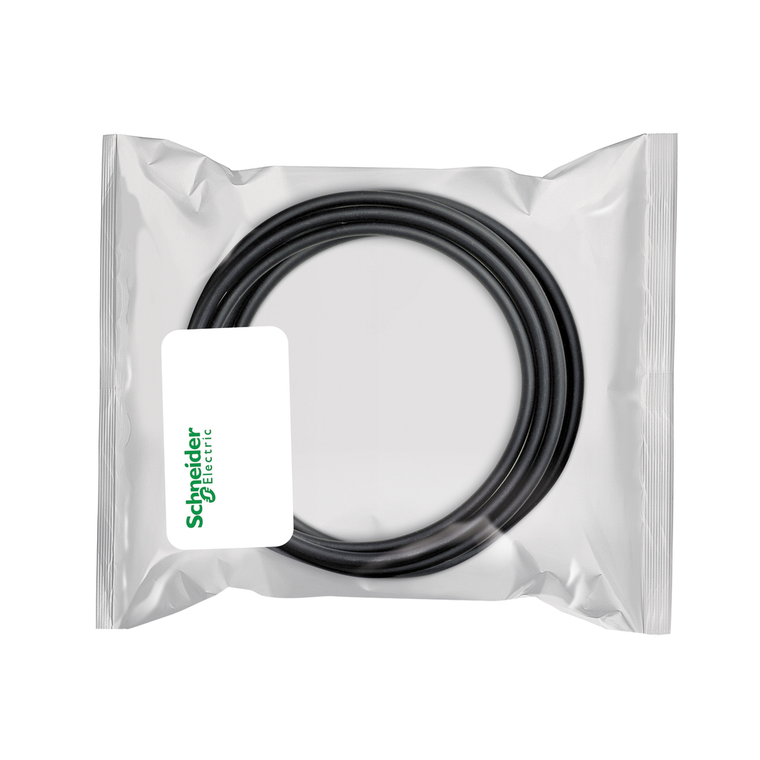

Schneider Electric VW3M5101R100 Bsh Motor Cable 1,5 Mm2 10M

Schneider Electric VW3M5101R100 Bsh Motor Cable 1,5 Mm2 10M

Schneider Electric
SKU:
VW3M5101R100
|
UPC:
3389119207317
Availability:
Contact us to confirm availability and lead times.
$210.24
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Lexium range, an offer of motion servo drives and servo motors. This power cable is an accessory of servo drives and motors. The length of this cable is 10m. It is furnished with M23 industrial connector for servo motor side and free end for servo drive side for electrical connection. The cable composition is 4 x 1.5mm² + 2 x 1mm². It is used between servo motor BDH, BSH and servo drive. It weighs 2.29kg. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives and with servo motors BMH and BSH. With this new generation of motors and drives, you have the benefit of powerful solutions to design and optimize machines, the perfect answer to your technical and economic challenges. The high concentrate solutions for your machines.
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
Rohs Exemption Information:
Yes
Circularity Profile:
ENVEOLI1112048EN
Net Weight:
2.29 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Toxic Heavy Metal Free:
Yes
Environmental Disclosure:
ENVPEP111248EN
Electrical Connection:
connector - industrial M23 servo motor side || free end servo drive side
Reach Free Of Svhc:
Yes
Accessory / Separate Part Destination:
between servo motor and servo drive
Cable Length:
10 m
Cable Composition:
4 x 1.5 mm² + 2 x 1 mm²
Mercury Free:
Yes
Accessory / Separate Part Type:
preassembled power cordset
Accessory / Separate Part Category:
connection accessory
Range Compatibility:
Lexium 32 || Lexium 05 || Lexium 15
Product Compatibility:
servo motor BMH, 1 70 mm) || servo motor BMH, 2 70 mm) || servo motor BMH, 3 70 mm) || servo motor BMH, 1 100 mm) || servo motor BMH, 2 100 mm) || servo motor BMH, 3 100 mm) || servo motor BMH, 1 140 mm) || servo motor BSH, 1 55 mm) || servo motor BS
China Rohs Regulation:
X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Warranty:
18 months
Product Or Component Type:
power cable
Datasheet:
View
QN-QUOTE-REQUEST:
true
