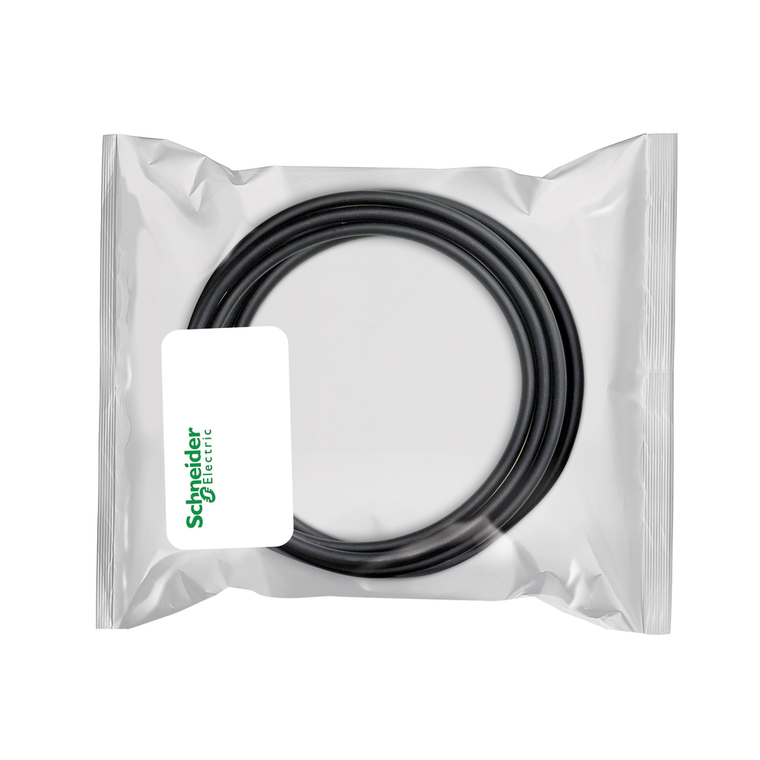

Schneider Electric VW3M5101R200 Bsh Motor Cable 1,5 Mm2 20M
Schneider Electric
$291.99
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Lexium range, an offer of motion servo drives and servo motors. This power cable is an accessory of servo drives and motors. The length of this cable is 20m. It is furnished with M23 industrial connector for servo motor side and free end for servo drive side for electrical connection. The cable composition is 4 x 1.5mm² + 2 x 1mm². It is used between servo motor BDH, BSH and servo drive. It weighs 4.51kg. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives and with servo motors BMH and BSH. With this new generation of motors and drives, you have the benefit of powerful solutions to design and optimize machines, the perfect answer to your technical and economic challenges. The high concentrate solutions for your machines.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Accessory / Separate Part Destination:
- between servo motor and servo drive
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Net Weight:
- 4.51 kg
- Range Compatibility:
- Lexium 05 || Lexium 15 || Lexium 32
- Product Or Component Type:
- power cable
- Electrical Connection:
- connector - industrial M23 servo motor side || free end servo drive side
- Accessory / Separate Part Category:
- connection accessory
- Product Compatibility:
- servo motor BMH, 1 70 mm) || servo motor BMH, 2 70 mm) || servo motor BMH, 3 70 mm) || servo motor BMH, 1 100 mm) || servo motor BMH, 2 100 mm) || servo motor BMH, 3 100 mm) || servo motor BMH, 1 140 mm) || servo motor BSH, 1 55 mm) || servo motor BS
- Pvc Free:
- Yes
- Circularity Profile:
- ENVEOLI1112048EN
- Cable Composition:
- 4 x 1.5 mm² + 2 x 1 mm²
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP111248EN
- Sustainable Offer Status:
- Green Premium product
- Accessory / Separate Part Type:
- preassembled power cordset
- Cable Length:
- 20 m
- Mercury Free:
- Yes
- Datasheet:
- View
