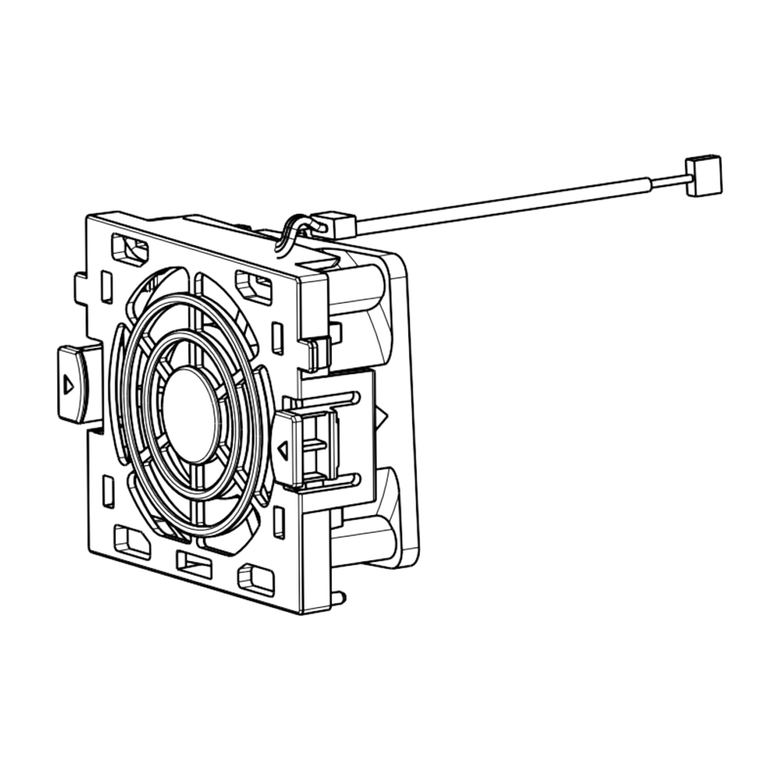

Schneider Electric VX5VPS2001 Power Electronic Fan Kit/Dc24V D80X38Mm

Schneider Electric VX5VPS2001 Power Electronic Fan Kit/Dc24V D80X38Mm

Schneider Electric
SKU:
VX5VPS2001
|
UPC:
3606480717383
Availability:
Contact us to confirm availability and lead times.
$123.80
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 5.5kw to 11kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17cm (width) x 23cm (Length) x 7cm (Height) and weighs 220g. This power fan is compatible with ATV630U55M3, ATV630U75N4 to D11N4, ATV650U75N4 to D11N4, ATV650U75N4E to D11N4E, ATV930U55M3, ATV930U75N4 to D11N4, ATV950U75N4 to D11N4, ATV950U75N4E to D11N4E. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.
Additional Information
Product Or Component Type:
fan
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Accessory / Separate Part Category:
cooling accessory
Range Compatibility:
Altivar Process 600/900
Mercury Free:
Yes
Kit Composition:
fan || mounting bracket || instruction sheet
Product Compatibility:
variable speed drive ATV630 wall mount 5.5-5.5 kW 200...240 V || variable speed drive ATV630 wall mount 7.5-7.5 kW 380...480 V || variable speed drive ATV630 wall mount 11-11 kW 380...480 V || variable speed drive ATV930 wall mount 5.5-5.5 kW 200...2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory / Separate Part Type:
fan kit
Reach Regulation:
Free of Substances of Very High Concern above the threshold
