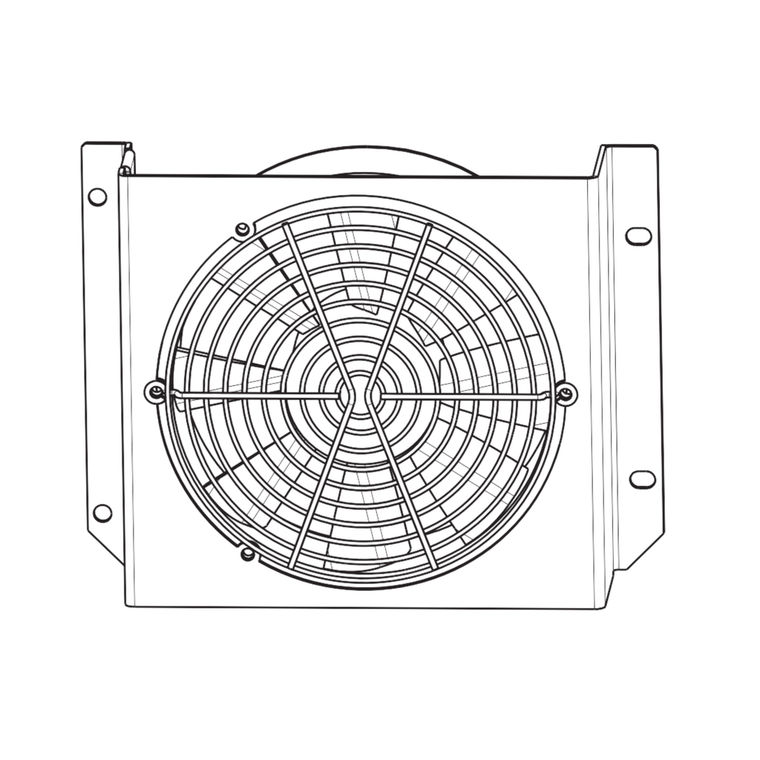

Schneider Electric VX5VPS6001 Power Electronic Fan/Dc48V D172X50.8Mm
Schneider Electric
$381.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VX5VPS6001 Power Electronic Fan/Dc48V D172X50.8Mm
This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 55kw to 160kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 30.4cm (width) x 30.8cm (Length) x 9.8cm (Height) and weighs 1.904kg. This power fan is compatible with ATV630C11N4 to C16N4, ATV930D55M3C to D75M3C, ATV930C11N4 to C16N4, ATV930C11N4C to C16N4C. This kit includes 1 power fan for IP21 and IP55 drive, 1 bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Accessory / Separate Part Category:
- cooling accessory
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Kit Composition:
- fan || mounting bracket || instruction sheet
- Product Or Component Type:
- fan
- Accessory / Separate Part Type:
- fan kit
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Compatibility:
- variable speed drive ATV630 wall mount 55-55 kW 200...240 V || variable speed drive ATV630 wall mount 75-75 kW 200...240 V || variable speed drive ATV630 wall mount 110-110 kW 380...480 V || variable speed drive ATV630 wall mount 132-132 kW 380...480
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Compatibility:
- Altivar Process 600/900
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
