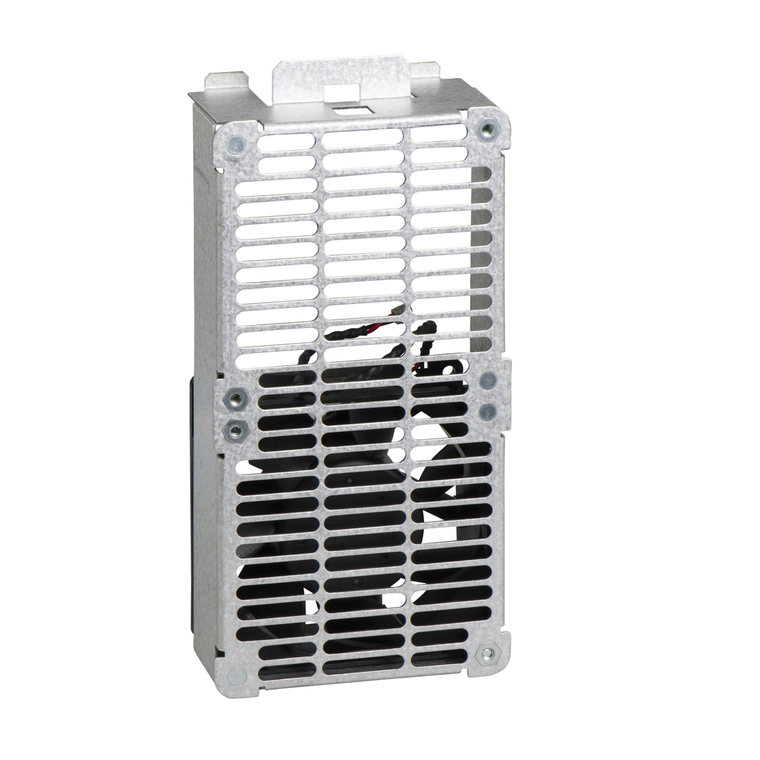

Schneider Electric VZ3V1211 Fan Tape T6
Schneider Electric
$127.28
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

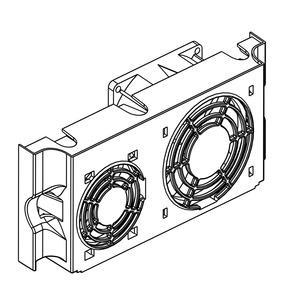

This product is a wear part for Drive Altivar 212, Altivar 61 and Altivar 71. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV212 from 0.75kw to 75kw and a rated voltage from 200V to 480V, variable speed drive ATV61 from 0.75kw to 800 kw, variable speed drive ATV71 from 0.37kw to 630 kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 29.2cm (width) x 29.6cm (Length) x 9.2cm (Height) and weighs 712g. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. Best in class efficiency make the AHRI Certified ATV212 the ideal choice for pump, fan and scroll compressor applications in modern buildings.
- Warranty:
- 18 months
- Accessory / Separate Part Type:
- fan kit
- Range Compatibility:
- Altivar 61/71 || Altivar 212
- Product Compatibility:
- variable speed drive ATV61 || variable speed drive ATV71 || variable speed drive ATV212
- Product Or Component Type:
- fan
- Accessory / Separate Part Category:
- cooling accessory
- Kit Composition:
- fan || mounting bracket || instruction sheet
- Catalog:
- View
- Datasheet:
- View
