Schneider Electric XACA03H7 Pushbutton Station
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

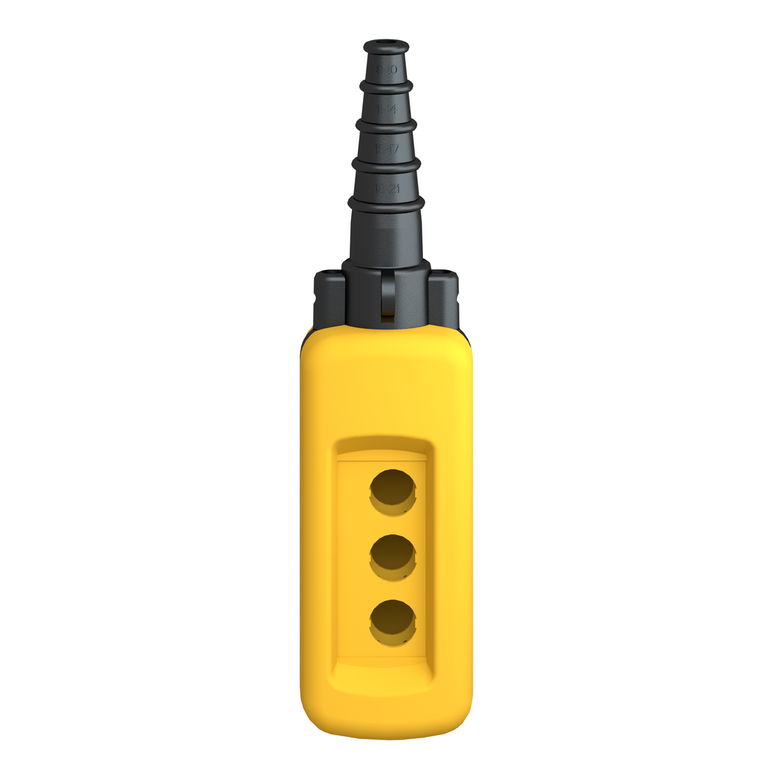

This Harmony XACA03H7 is a empty pendant control station with 3 vertical openings for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
- Vertical Operator Cut-Out Centre:
- 30 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Control Station Colour:
- yellow
- Standards:
- UL 508 || EN/IEC 60204-32 || CSA C22.2 No 14 || EN/IEC 60947-5-1
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Protective Treatment:
- TH
- Ik Degree Of Protection:
- IK08 EN 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Overvoltage Category:
- class II IEC 61140
- Product Certifications:
- CSA || GOST || UL || CCC
- Control Station Type:
- double insulated
- Number Of Cut-Out:
- 3 cut-outs
- Net Weight:
- 0.44 kg
- Guard Rail:
- without
- Cable Entry:
- rubber sleeve with stepped entry 8-26 mm
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Harmony XAC
- Product Or Component Type:
- pendant control station
- Enclosure Type:
- empty enclosure
- Device Short Name:
- XACA
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP070905EN
- Enclosure Material:
- polypropylene
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -25-70 °C
- Mechanical Durability:
- 1000000 cycles
- Electrical Circuit Type:
- control circuit
- Reach Free Of Svhc:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
