Schneider Electric XACA06H7 Pendant Station Enclosure

Schneider Electric XACA06H7 Pendant Station Enclosure

Schneider Electric
SKU:
XACA06H7
|
UPC:
3389110306491
Availability:
Contact us to confirm availability and lead times.
$306.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

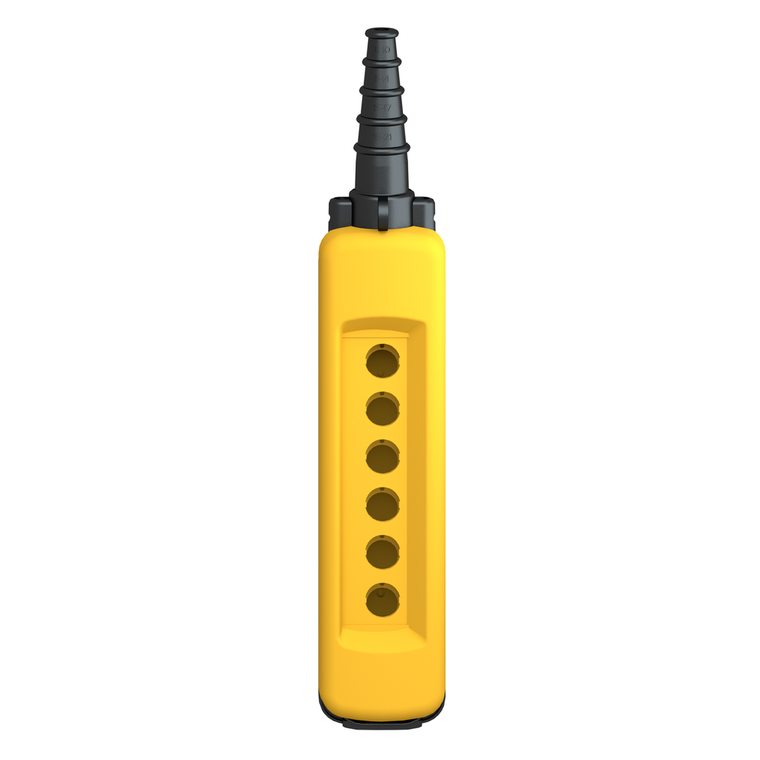

This Harmony XACA06H7 is an empty pendant control station with 6 vertical openings for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-40-70 °C
Device Short Name:
XACA
Circularity Profile:
N/A
Net Weight:
0.665 kg
Toxic Heavy Metal Free:
Yes
Product Certifications:
GOST || UL || CCC || CSA
Ambient Air Temperature For Operation:
-25-70 °C
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP070905EN
Mercury Free:
Yes
Ip Degree Of Protection:
IP65 conforming to IEC 60529
Shock Resistance:
100 gn IEC 60068-2-27
Cable Entry:
rubber sleeve with stepped entry 8-26 mm
Sustainable Offer Status:
Green Premium product
Range Of Product:
Harmony XAC
Reach Regulation:
Free of Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Guard Rail:
without
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Product Or Component Type:
pendant control station
Electrical Circuit Type:
control circuit
Protective Treatment:
TH
Enclosure Type:
empty enclosure
Control Station Type:
double insulated
Mechanical Durability:
1000000 cycles
Overvoltage Category:
class II IEC 61140
Control Station Colour:
yellow
Standards:
EN/IEC 60204-32 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1
Vertical Operator Cut-Out Centre:
30 mm
Reach Free Of Svhc:
Yes
Ik Degree Of Protection:
IK08 EN 50102
Warranty:
18 months
Number Of Cut-Out:
6 cut-outs
Enclosure Material:
polypropylene
Vibration Resistance:
15 gn 10-500 Hz)IEC 60068-2-6
