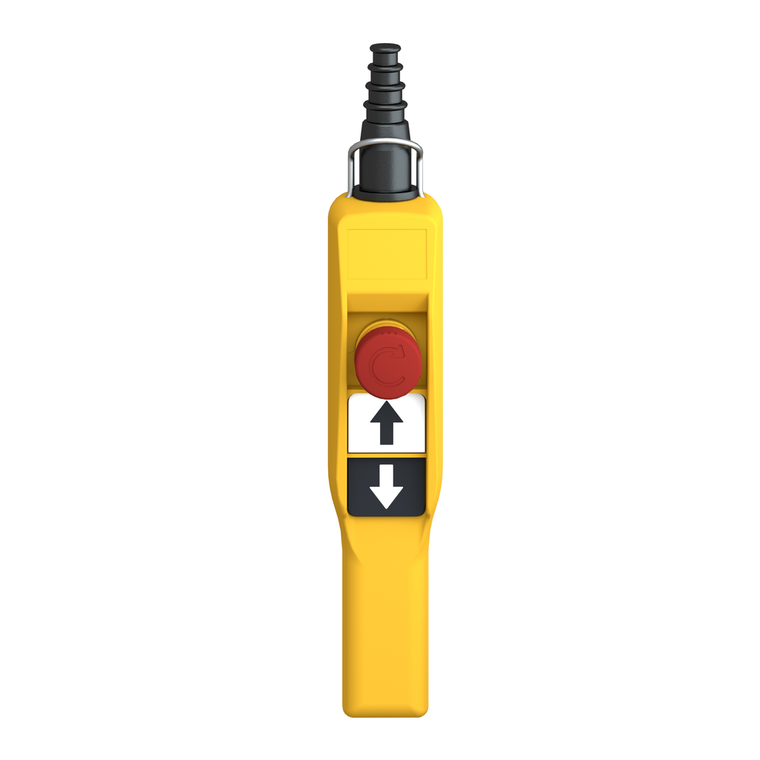

Schneider Electric XACA2053 Pistol Pendant Station 2 Pb + Emergen

(No reviews yet) Write a Review

Write a Review

Schneider Electric XACA2053 Pistol Pendant Station 2 Pb + Emergen

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XACA2053

UPC:

3389110558814

MPN:

Condition:

New

Terminals Description Iso N°1:

(13-14)NO || (11-12)NC

Rated Operational Power In W:

40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Standards:

EN/IEC 60204-32 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Toxic Heavy Metal Free:

Yes

Environmental Disclosure:

ENVPEP070905EN

Device Short Name:

XACA pistol grip

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Control Station Colour:

yellow

Control Button Type:

stop push-button Ø 30 mm 1 NC latching || first push-button 1 NC + 1 NO raise, slow || second push-button 1 NC + 1 NO lower, slow

Shock Resistance:

100 gn IEC 60068-2-27

Control Type:

intuitive

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Mercury Free:

Yes

Contact Operation:

slow-break

Enclosure Material:

polypropylene

Electrical Circuit Type:

control circuit

China Rohs Regulation:

X

Control Station Composition:

2 push-buttons + 1 emergency stop

Reach Free Of Svhc:

Yes

Connections - Terminals:

screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mechanical Interlocking:

with mechanical interlocking

Protective Treatment:

TH

[Ithe] Conventional Enclosed Thermal Current:

0.416666666666667

Maximum Resistance Across Terminals:

25 MOhm

Range Of Product:

Harmony XAC

Ambient Air Temperature For Operation:

-25-70 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Contact Code Designation:

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Overvoltage Category:

class II IEC 61140

Product Compatibility:

ZB2BE102 for emergency stop || ZB2BE102 + ZB2BE101 for each direction

Net Weight:

0.34 kg

Ambient Air Temperature For Storage:

-40-70 °C

Warranty:

18 months

Ip Degree Of Protection:

IP65 conforming to IEC 60529

Ik Degree Of Protection:

IK08 EN 50102

Sustainable Offer Status:

Green Premium product

Terminal Identifier:

(13-14)NO || (11-12)NC

Enclosure Type:

complete ready for use

Operating Force:

13-15 N

Mechanical Durability:

1000000 cycles

Product Certifications:

UL || CSA

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Terminals Description Iso N°2:

(11-12)NC

Control Station Type:

double insulated

Cable Entry:

rubber sleeve with stepped entry 7-15 mm

Circularity Profile:

N/A

Product Or Component Type:

pendant control station

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Rohs Exemption Information:

Yes

Control Station Application:

control of single speed hoist motor

Short-Circuit Protection:

10 A fuse protection cartridge gG
