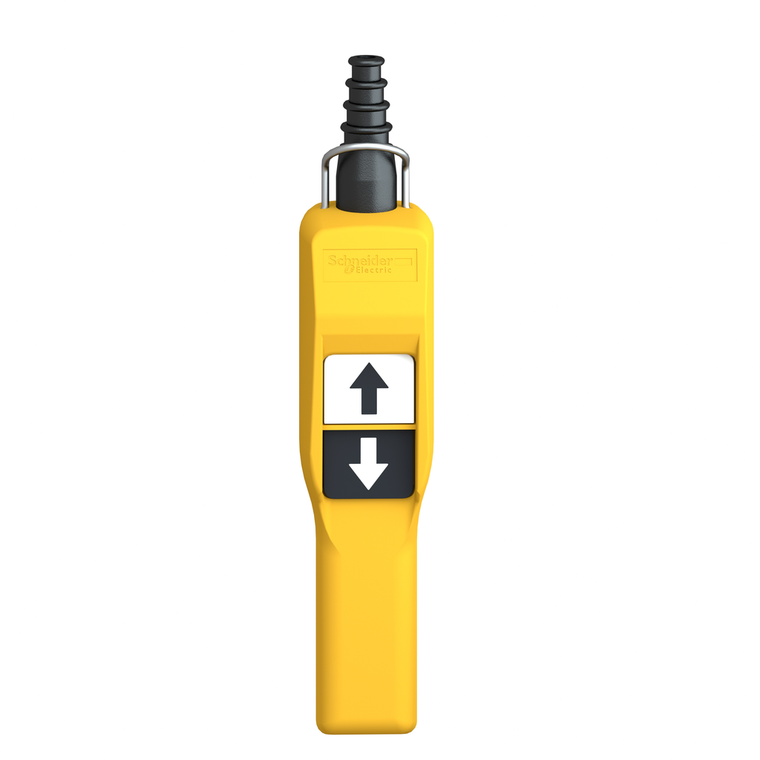

Schneider Electric XACA211 Pushbutton Station
Schneider Electric
$188.90
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
- Control Type:
- intuitive
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Contact Operation:
- slow-break
- Cable Entry:
- rubber sleeve with stepped entry 7-15 mm
- Operating Force:
- 13-15 N
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Product Certifications:
- UL || CSA
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Compatibility:
- ZB2BE101 for each direction
- Circularity Profile:
- N/A
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- China Rohs Regulation:
- X
- Mechanical Interlocking:
- with mechanical interlocking
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Device Short Name:
- XACA pistol grip
- Protective Treatment:
- TH
- Product Or Component Type:
- pendant control station
- Enclosure Material:
- polypropylene
- Toxic Heavy Metal Free:
- Yes
- Electrical Circuit Type:
- control circuit
- Rated Operational Power In W:
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Overvoltage Category:
- class II IEC 61140
- Maximum Resistance Across Terminals:
- 25 MOhm
- Enclosure Type:
- complete ready for use
- Control Station Application:
- control of single speed hoist motor
- Control Station Type:
- double insulated
- Mechanical Durability:
- 1000000 cycles
- Connections - Terminals:
- screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
- Control Station Composition:
- 2 booted push-buttons
- [Ithe] Conventional Enclosed Thermal Current:
- 0.416666666666667
- Control Button Type:
- first push-button 1 NO raise, slow || second push-button 1 NO lower, slow
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Standards:
- UL 508 || EN/IEC 60204-32 || EN/IEC 60947-5-1 || CSA C22.2 No 14
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Terminals Description Iso N°1:
- (13-14)NO
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Contact Code Designation:
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP070905EN
- Range Of Product:
- Harmony XAC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Control Station Colour:
- yellow
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Terminal Identifier:
- (11-12)NC || (13-14)NO
- Sustainable Offer Status:
- Green Premium product
- Short-Circuit Protection:
- 10 A fuse protection cartridge gG
- Ik Degree Of Protection:
- IK08 EN 50102
