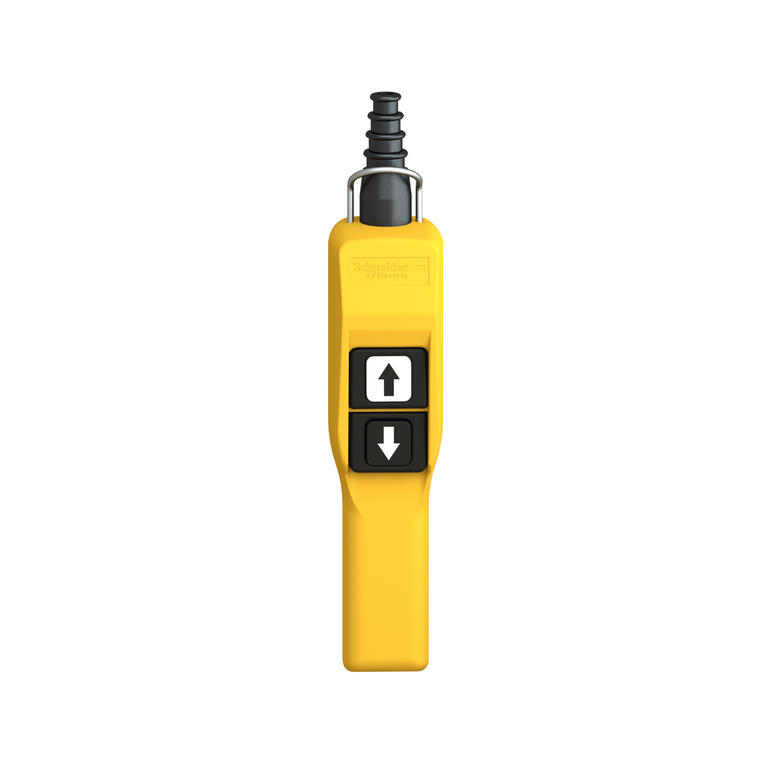

Schneider Electric XACA215 Pushbutton Station

Schneider Electric XACA215 Pushbutton Station

Schneider Electric
SKU:
XACA215
|
UPC:
3389110644838
$282.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Additional Information
Mechanical Durability:
1000000 cycles
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Control Station Application:
control of single speed hoist motor
Ip Degree Of Protection:
IP65 conforming to IEC 60529
Enclosure Material:
polypropylene
Terminal Identifier:
(11-12)NC || (13-14)NO
Electrical Circuit Type:
control circuit
Operating Force:
13-15 N
Short-Circuit Protection:
10 A fuse protection cartridge gG
Ambient Air Temperature For Storage:
-40-70 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Overvoltage Category:
class II IEC 61140
Toxic Heavy Metal Free:
Yes
Contact Code Designation:
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Standards:
EN/ISO 13850: 2006 || UL 508 || EN/IEC 60204-32 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5
Control Button Type:
first push-button 1 NC + 1 NO raise, slow || second push-button 1 NC + 1 NO lower, slow
Rohs Exemption Information:
Yes
Vibration Resistance:
15 gn 10-500 Hz)IEC 60068-2-6
Warranty:
18 months
Connections - Terminals:
screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Net Weight:
0.32 kg
Contact Operation:
slow-break
Rated Operational Power In W:
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Ambient Air Temperature For Operation:
-25-70 °C
Environmental Disclosure:
ENVPEP070905EN
Product Compatibility:
ZB2BE102 + ZB2BE101 for each direction
Circularity Profile:
N/A
Cable Entry:
rubber sleeve with stepped entry 7-15 mm
Product Or Component Type:
pendant control station
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Mercury Free:
Yes
Range Of Product:
Harmony XAC
Control Type:
intuitive
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shock Resistance:
100 gn IEC 60068-2-27
Ik Degree Of Protection:
IK08 EN 50102
Control Station Colour:
yellow
Device Short Name:
XACA pistol grip
[Ithe] Conventional Enclosed Thermal Current:
0.416666666666667
China Rohs Regulation:
X
Enclosure Type:
complete ready for use
Terminals Description Iso N°1:
(13-14)NO || (11-12)NC
Reach Free Of Svhc:
Yes
Maximum Resistance Across Terminals:
25 MOhm
Protective Treatment:
TH
Control Station Composition:
2 booted push-buttons
Mechanical Interlocking:
with mechanical interlocking
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Control Station Type:
double insulated
Product Certifications:
UL || CSA
