Schneider Electric XACA217 Pushbutton Station
Schneider Electric
$270.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

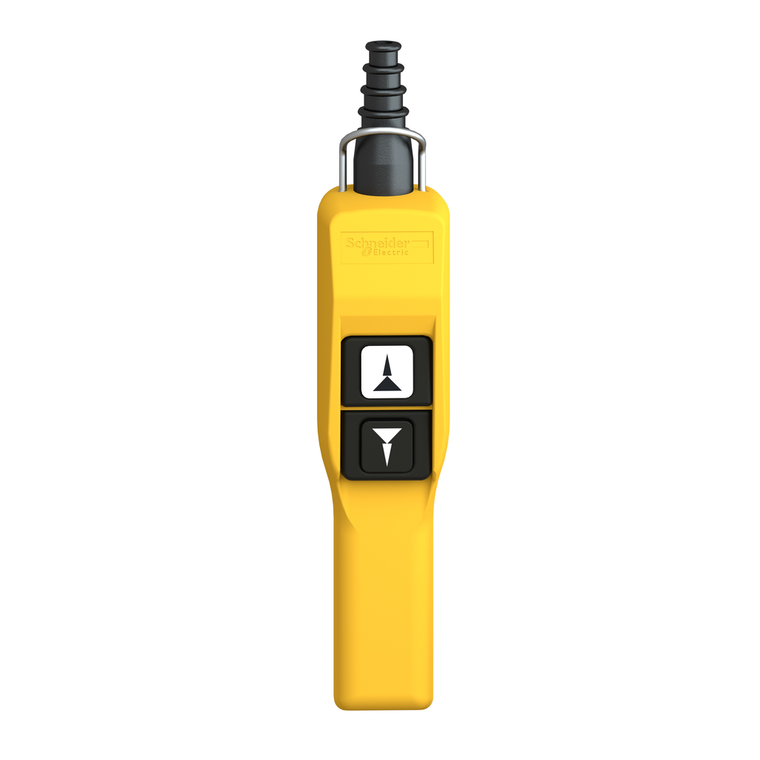

This Harmony XACA217 is a pendant station pistol grip with 2 booted push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
- Ik Degree Of Protection:
- IK08 IEC 62262
- Terminal Identifier:
- (13-14)NO || (11-12)NC
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Control Station Application:
- control of 2-speed hoist motor
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Short-Circuit Protection:
- 10 A fuse protection cartridge gG
- Environmental Disclosure:
- ENVPEP070905EN
- Maximum Resistance Across Terminals:
- 25 MOhm
- Enclosure Material:
- polypropylene
- Enclosure Type:
- complete ready for use
- China Rohs Regulation:
- X
- Circularity Profile:
- N/A
- Control Station Type:
- double insulated
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- Overvoltage Category:
- class II IEC 61140
- Warranty:
- 18 months
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Product Certifications:
- CSA || UL
- Sustainable Offer Status:
- Green Premium product
- Control Type:
- intuitive
- Control Station Composition:
- 2 booted push-buttons
- Range Of Product:
- Harmony XAC
- Electrical Circuit Type:
- control circuit
- Net Weight:
- 0.32 kg
- Protective Treatment:
- TH
- Reach Free Of Svhc:
- Yes
- Contact Code Designation:
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Control Button Type:
- first push-button 2 NO (2 step) raise, slow-fast || second push-button 2 NO (2 step) lower, slow-fast
- Mechanical Durability:
- 1000000 cycles
- Connections - Terminals:
- screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Mechanical Interlocking:
- with mechanical interlocking
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rated Operational Power In W:
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Contact Operation:
- slow-break || staggered
- Product Compatibility:
- ZB2BE101 + ZB2BE201 for each direction
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- [Ithe] Conventional Enclosed Thermal Current:
- 0.416666666666667
- Operating Force:
- 13-15 N
- Standards:
- IEC 60204-32 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14
- Cable Entry:
- rubber sleeve with stepped entry 7-15 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rohs Exemption Information:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- pendant control station
- Terminals Description Iso N°1:
- (23-24)NO_CL || (13-14)NO
- Control Station Colour:
- yellow
- Ambient Air Temperature For Operation:
- -25-70 °C
- Device Short Name:
- XACA pistol grip
