Schneider Electric XACA2173 Pistol Pendant Station 2 Pb + Emergen

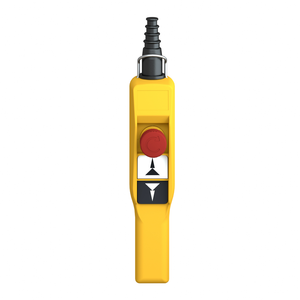

This yellow, complete ready to use, pendant station for control circuits is designed for control of 2-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- UL || CSA
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cable Entry:
- rubber sleeve with stepped entry 7-15 mm
- Sustainable Offer Status:
- Green Premium product
- Enclosure Type:
- complete ready for use
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- Warranty:
- 18 months
- Rated Operational Power In W:
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Connections - Terminals:
- screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
- [Ithe] Conventional Enclosed Thermal Current:
- 0.416666666666667
- Terminal Identifier:
- (13-14)NO || (11-12)NC
- Operating Force:
- 13-15 N
- Contact Code Designation:
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Ambient Air Temperature For Storage:
- -40-70 °C
- Control Station Type:
- double insulated
- Product Or Component Type:
- pendant control station
- Terminals Description Iso N°2:
- (11-12)NC
- Contact Operation:
- slow-break || staggered
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Operation:
- -25-70 °C
- Range Of Product:
- Harmony XAC
- Control Station Colour:
- yellow
- Control Station Composition:
- 2 booted push-buttons + 1 emergency stop
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Maximum Resistance Across Terminals:
- 25 MOhm
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Enclosure Material:
- polypropylene
- Control Station Application:
- control of 2-speed hoist motor
- Ik Degree Of Protection:
- IK08 IEC 62262
- Net Weight:
- 0.36 kg
- Mechanical Interlocking:
- with mechanical interlocking
- Mercury Free:
- Yes
- Product Compatibility:
- ZB2BE102 for emergency stop || ZB2BE101 + ZB2BE201 for each direction
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Device Short Name:
- XACA pistol grip
- Environmental Disclosure:
- ENVPEP070905EN
- China Rohs Regulation:
- X
- Control Button Type:
- stop push-button à 30 mm 1 NC latching || first push-button 2 NO raise, slow-fast || second push-button 2 NO lower, slow-fast
- Mechanical Durability:
- 1000000 cycles
- Overvoltage Category:
- class II IEC 61140
- Electrical Circuit Type:
- control circuit
- Protective Treatment:
- TH
- Control Type:
- intuitive
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Standards:
- IEC 60204-32 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14
- Terminals Description Iso N°1:
- (13-14)NO || (23-24)NO_CL
- Short-Circuit Protection:
- 10 A fuse protection cartridge gG
