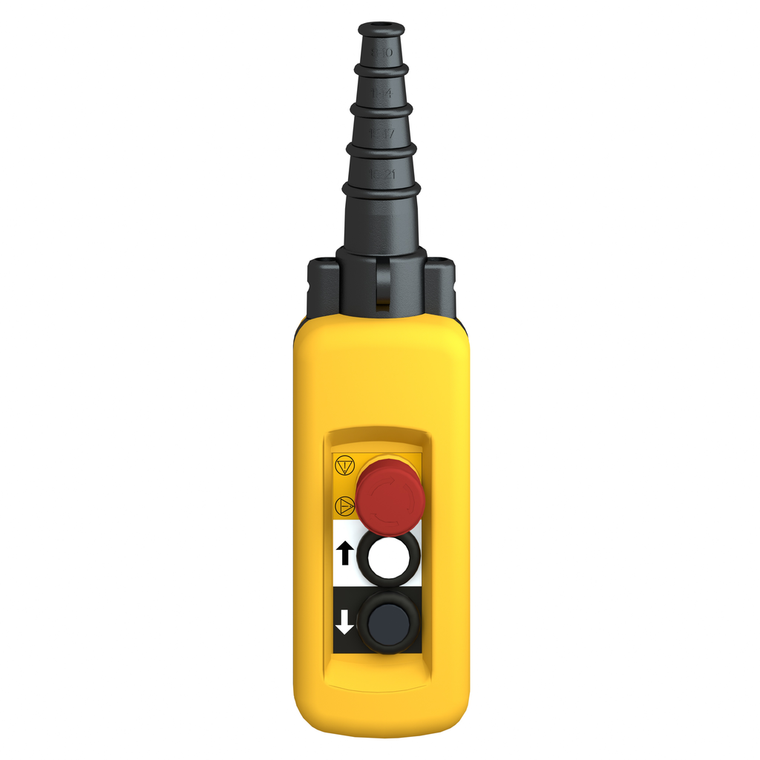

Schneider Electric XACA2813 Pendant Station Xaca 2 Push But To Ns 1

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XACA2813 Pendant Station Xaca 2 Push But To Ns 1

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XACA2813

UPC:

3389110426816

MPN:

Condition:

New

Control Button Type:

stop push-button Ø 30 mm 1 NC latching || first push-button 1 NC + 1 NO raise, slow || second push-button 1 NC + 1 NO lower, slow

Enclosure Type:

complete ready for use

Mechanical Durability:

1000000 cycles

[Ui] Rated Insulation Voltage:

600 V 3)

Standards:

IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60204-32

Rohs Exemption Information:

Yes

Operating Force:

13-13 N push-button || 8-8 N emergency stop

Control Station Type:

double insulated

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Overvoltage Category:

class II IEC 61140

Ambient Air Temperature For Storage:

-40-70 °C

Reach Free Of Svhc:

Yes

Terminals Description Iso N°2:

(11-12)NC

Circularity Profile:

N/A

Toxic Heavy Metal Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Range Of Product:

Harmony XAC

Electrical Circuit Type:

control circuit

Ambient Air Temperature For Operation:

-25-70 °C

Terminal Identifier:

(11-12)NC || (13-14)NO

Product Certifications:

GOST || CCC

Enclosure Material:

polypropylene

Rated Operational Power In W:

40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Product Compatibility:

ZB2BE102 for emergency stop || ZB2BE102 + ZB2BE101 for each direction

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP65 conforming to IEC 60529

Maximum Resistance Across Terminals:

25 MOhm

China Rohs Regulation:

X

Protective Treatment:

TH

[Ithe] Conventional Enclosed Thermal Current:

0.416666666666667

Contact Code Designation:

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Connections - Terminals:

screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

Ik Degree Of Protection:

IK08 IEC 62262

Environmental Disclosure:

ENVPEP070905EN

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Net Weight:

0.6 kg

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Cable Entry:

rubber sleeve with stepped entry 8-26 mm

Short-Circuit Protection:

10 A fuse protection cartridge gG

Terminals Description Iso N°1:

(11-12)NC || (13-14)NO

Mercury Free:

Yes

Control Station Colour:

yellow

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Device Short Name:

XACA

Product Or Component Type:

pendant control station

Mechanical Interlocking:

with mechanical interlocking

Shock Resistance:

100 gn IEC 60068-2-27

Contact Operation:

slow-break

Warranty:

18 months

Control Station Composition:

2 push-buttons + 1 emergency stop

Control Station Application:

control of single speed hoist motor
