Schneider Electric

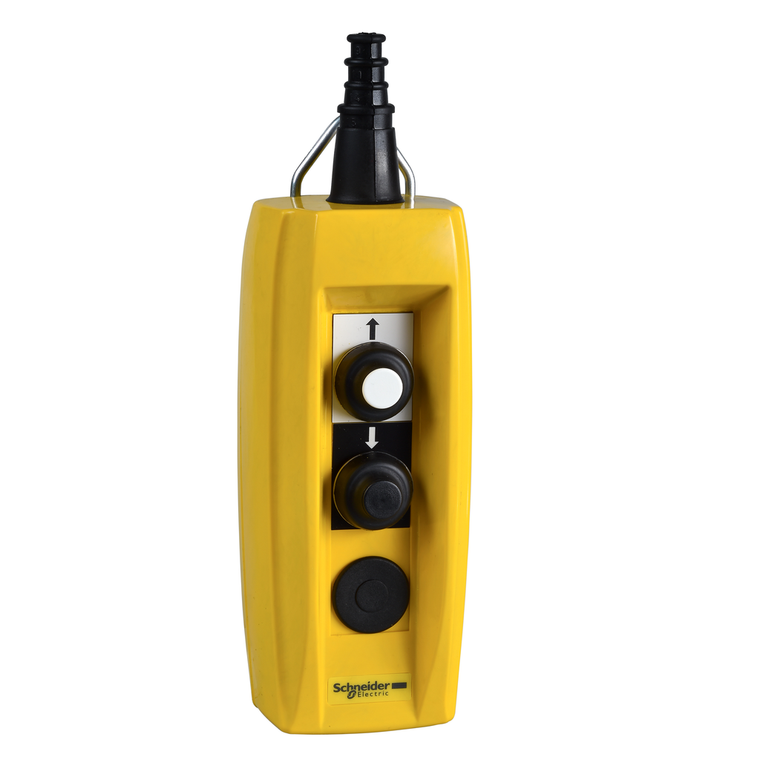

Schneider Electric XACB219 Pendant Station Xacb 2 Push But To Ns

SKU:

XACB219

UPC:

3389110636154

MPN:

Condition:

New

Standards:

CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60204-32

Overvoltage Category:

class II IEC 61140

Cable Entry:

rubber sleeve with stepped entry 7-13 mm

Mercury Free:

Yes

Control Station Composition:

2 push-buttons

Electrical Durability:

300000 cycles AC-3, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-3, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-4, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-4, 2200 W 400

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Shock Resistance:

100 gn IEC 60068-2-27

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Ui] Rated Insulation Voltage:

500 V 3)IEC 60947-1 || 600 VCSA

Connections - Terminals:

screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP65 conforming to IEC 60529

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Control Station Application:

control of single speed hoist motor

Range Of Product:

Harmony XAC

Enclosure Material:

glass reinforced polyester

Control Station Type:

double insulated

Ambient Air Temperature For Operation:

-25-70 °C

Net Weight:

0.355 kg

Product Compatibility:

XESD1191 for reversing operation

Rated Power In Hp:

2 hp 240 V, CSA || 3 hp 600 V, CSA || 5 hp 400 V, CSA

Ambient Air Temperature For Storage:

-40-70 °C

Reach Free Of Svhc:

Yes

China Rohs Regulation:

X

Rated Operational Power In W:

2200 W AC-3 240 V IEC 60947-3 appendix A || 2200 W AC-3 400 V IEC 60947-3 appendix A || 2200 W AC-4 240 V IEC 60947-3 appendix A || 2200 W AC-4 400 V IEC 60947-3 appendix A

Terminals Description Iso N°1:

(43-44)NO || (23-24)NO || (13-14)NO || (33-34)NO

Enclosure Type:

complete ready for use

Product Or Component Type:

pendant control station

Warranty:

18 months

Product Certifications:

CSA type 4

[Ithe] Conventional Enclosed Thermal Current:

0

Contact Operation:

snap action

Protective Treatment:

TH

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Device Short Name:

XACB

Operating Force:

17-17 N push-button

Electrical Circuit Type:

power circuit

Mechanical Interlocking:

with mechanical interlocking

Control Button Type:

first push-button 2-pole raise, slow || second push-button 2-pole lower, slow

Mechanical Durability:

1000000 cycles

Control Station Colour:

yellow

Toxic Heavy Metal Free:

Yes

Short-Circuit Protection:

10 A fuse protection cartridge aM

Terminal Identifier:

(13-14)NO || (11-12)NC
