Schneider Electric XACB9122 Pushbutton Head Pack of 10
Schneider Electric
$164.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XACB9122 Pushbutton Head Pack of 10

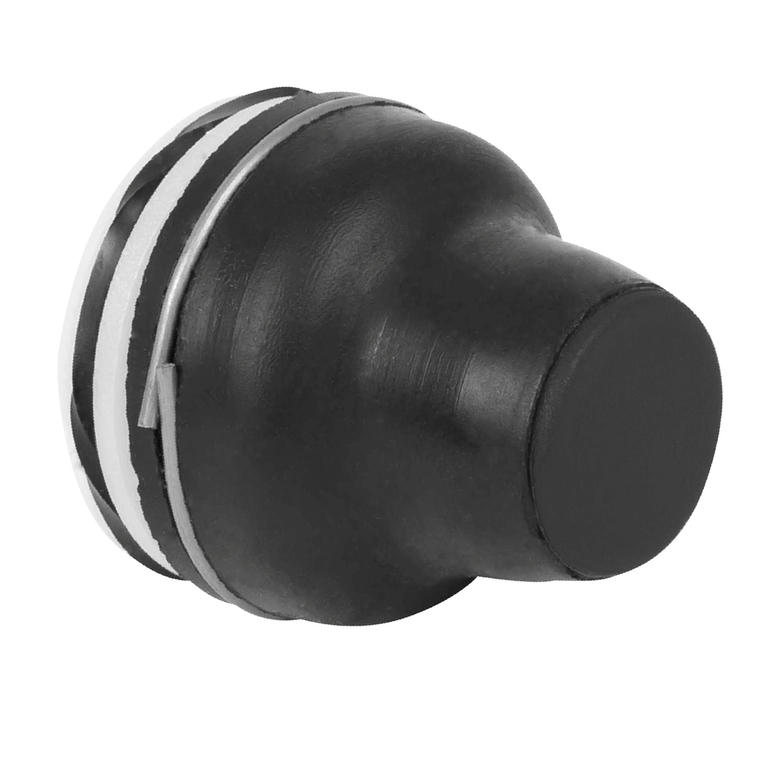

This Harmony XACB9122 is a booted head for push button black 4mm travel, -40°C to +70 °C. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP65 conforming to IEC 60529
- Product Compatibility:
- XENC.... || XESD2251 || XESB2011 || XENB.... || XESD2241 || XESD2201 || XEND....
- Cap/Operator Or Lens Colour:
- black
- China Rohs Regulation:
- X
- Net Weight:
- 0.005 kg
- Sale Per Indivisible Quantity:
- 10
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || EN 60947-5-1
- Product Or Component Type:
- head for push-button
- Ik Degree Of Protection:
- IK08 EN 50102
- Operating Travel:
- 4 mm
- Marking:
- unmarked
- Reach Free Of Svhc:
- Yes
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Operator Additional Information:
- booted
- Ambient Air Temperature For Operation:
- -40-70 °C
- Range Of Product:
- Harmony XAC
- Electrical Shock Protection Class:
- class II IEC 61140
- Component Name:
- XACB
- Mercury Free:
- Yes
- Catalog:
- View
- Datasheet:
- View
