Schneider Electric XACD22A0105 Pendant Control Station

Schneider Electric XACD22A0105 Pendant Control Station

Schneider Electric
SKU:
XACD22A0105
|
UPC:
3.38911E+12
$256.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

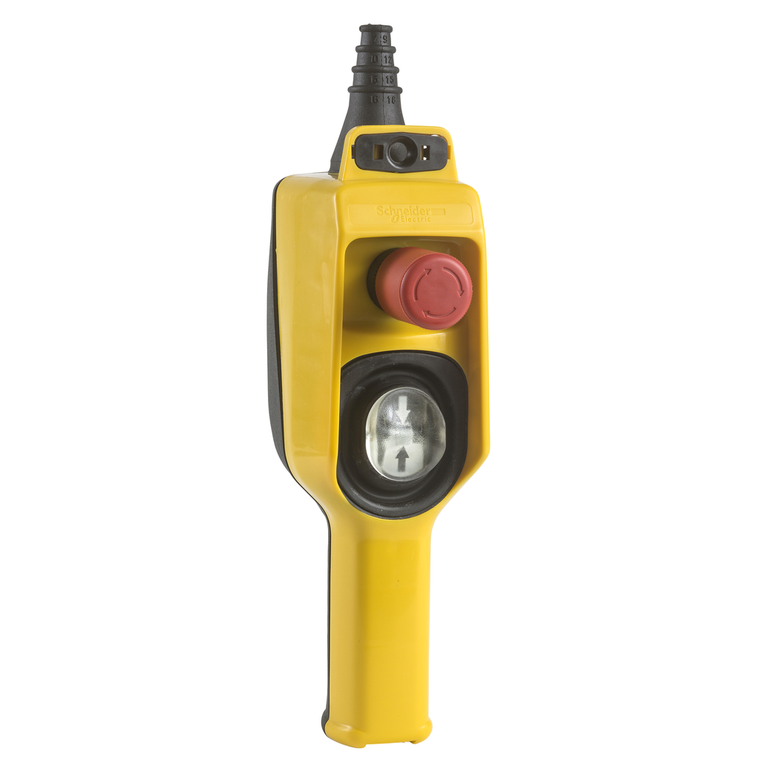

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylène enclosure with one 2-directional operator, reversing, and mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Additional Information
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Warranty:
18 months
[Ithe] Conventional Enclosed Thermal Current:
0.416666666666667
Cable Entry:
rubber sleeve with stepped entry 7-18 mm
Mechanical Interlocking:
with mechanical interlocking
Net Weight:
0.425 kg
Control Type:
intuitive
Enclosure Type:
complete ready for use
Ip Degree Of Protection:
IP65 conforming to IEC 60529
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Vibration Resistance:
15 gn 10-500 Hz)IEC 60068-2-6
Terminal Identifier:
(11-12)NC || (13-14)NO
Mechanical Durability:
3000000 cycles
Reach Free Of Svhc:
Yes
Toxic Heavy Metal Free:
Yes
Product Compatibility:
ZB2BE102 for emergency stop || ZB2BE102 + ZB2BE101 for each direction
Control Station Colour:
yellow
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contact Code Designation:
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Electrical Circuit Type:
control circuit
Contact Operation:
slow-break
Protective Treatment:
TH
Maximum Resistance Across Terminals:
25 MOhm
Motor Starter Type:
reversing
Shock Resistance:
70 gn IEC 60068-2-27
Terminals Description Iso N°2:
(11-12)NC
Operating Force:
16-16 N
Control Station Application:
control of single speed hoist motor
China Rohs Regulation:
X
Range Of Product:
Harmony XAC
Terminals Description Iso N°1:
(13-14)NO || (11-12)NC
Control Button Type:
stop push-button Ø 30 mm 1 NC latching || first direction button 1 NC + 1 NO raise, slow || second direction button 1 NC + 1 NO lower, slow
Ambient Air Temperature For Storage:
-40-70 °C
Overvoltage Category:
class II IEC 61140
Control Station Composition:
1 2-directional button + 1 emergency stop
Device Short Name:
XACD
Short-Circuit Protection:
10 A fuse protection cartridge gG
Ambient Air Temperature For Operation:
-25-70 °C
Rohs Exemption Information:
Yes
Product Or Component Type:
pendant control station
Enclosure Material:
polypropylene
Connections - Terminals:
screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Ik Degree Of Protection:
IK08 EN 50102
Control Station Type:
double insulated
Standards:
CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60204-32
Rated Operational Power In W:
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
