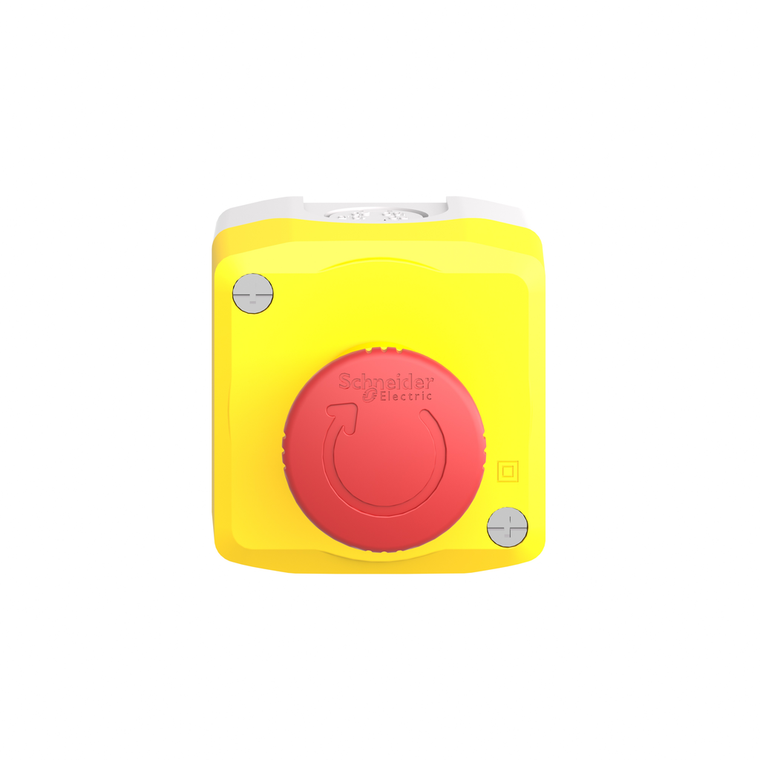

Schneider Electric XALACS1 22Mm Control Station - Mushroom

Schneider Electric XALACS1 22Mm Control Station - Mushroom

Schneider Electric
SKU:
XALACS1
|
UPC:
785901554394
Availability:
Contact us to confirm availability and lead times.
$118.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
XAL control stations are suitable for most common functions. XALK control stations are complete stations for emergency stop functions. This control station has an enclosure with a light grey box and a yellow cover. Control Station has a trigger action emergency stop operator with a 40mm red mushroom button. Operator is a turn to release push button. The operator has one normally closed contact. Control Station is 2.68 inches tall, 2.68 inches wide and 4.53 inches deep. The relay weighs 0.43 lbs. This point of purchase product is packaged in a blister pack. Control station is UL Listed and CSA certified. "This product is certified by IEC, UL, CSA and CE." "This range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents." "Plastic XALD/XALK control stations and enclosures for 22mm plastic pushbuttons (XB5/ZB5 range)."
Additional Information
Eu Rohs Directive:
Compliant
China Rohs Regulation:
X
Product Or Component Type:
complete control station
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP66
Device Short Name:
XALK
Colour Of Base Of Enclosure:
light grey RAL 7035)
Product Destination:
for XB5 Ø 22 mm control and signalling units
Ambient Air Temperature For Storage:
-40-70 °C
Range Of Product:
Harmony XALK
Control Station Application:
emergency switching off function
Ambient Air Temperature For Operation:
-25-70 °C
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Colour Of Cover:
yellow RAL 1021)
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Nema Degree Of Protection:
NEMA 13
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Toxic Heavy Metal Free:
Yes
Catalog:
View
Datasheet:
View
