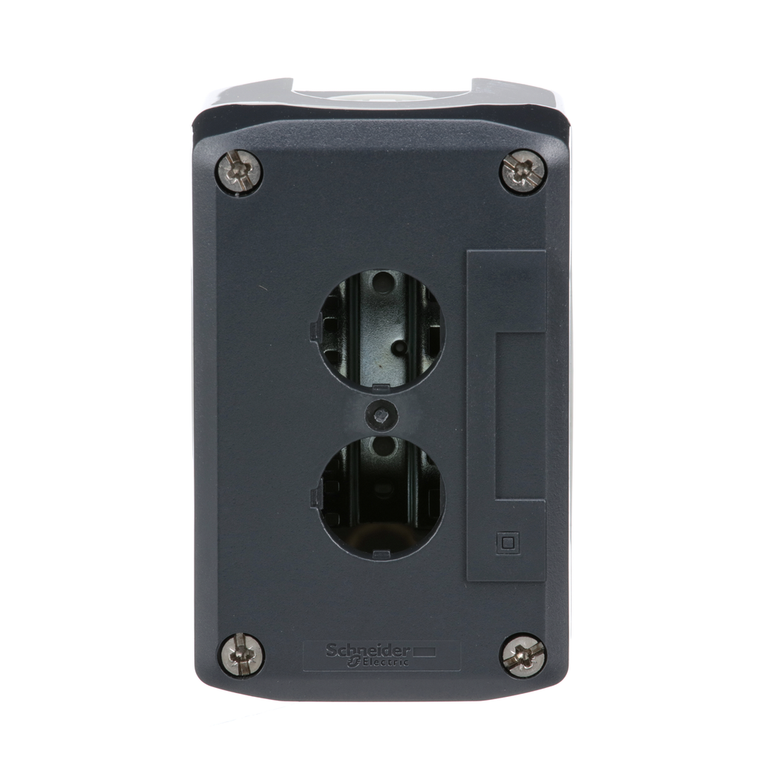

Schneider Electric XALD02H7 2 P.B Empty Cont. Box

(No reviews yet) Write a Review
SKU:
XALD02H7
UPC:
3389110114935
Condition:
New
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Colour Of Cover:
dark grey RAL 7016)
Standards:
JIS C8201-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
Protective Treatment:
TH
Cable Entry:
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Product Or Component Type:
empty control station
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Electrical Composition Code:
SF2 || MF1 || MF2 || SF1 || SR2 || PF2 || PF1 || PR1 || MR1 || SR1
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Destination:
for XB5 Ø 22 mm control and signalling units
Ambient Air Temperature For Storage:
-40-70 °C
Ik Degree Of Protection:
IK03 EN 50102
Device Short Name:
XALD
Circularity Profile:
ENVEOLI1806010EN
Sustainable Offer Status:
Green Premium product
Main Group:
2 cut-outs
Number Of Vertical Rows:
2
Net Weight:
0.205 kg
Range Of Product:
Harmony XALD
Mercury Free:
Yes
Material:
polycarbonate
Ambient Air Temperature For Operation:
-40-70 °C
Reach Free Of Svhc:
Yes
Colour Of Base Of Enclosure:
light grey RAL 7035)
Mounting Of Block:
rear mounting || front mounting
Assembly Style:
for customer assembly
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Group Of Product:
UL-CSA grey
Warranty:
18 months
Number Of Horizontal Rows:
1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Product Certifications:
UL || CSA
Environmental Disclosure:
ENVPEP1806010EN
Overvoltage Category:
class II IEC 60536
Number Of Cut-Out:
2 cut-outs
Toxic Heavy Metal Free:
Yes
Brochure:
View
Catalog:
View
Datasheet:
View
  • Schneider Electric XALD02H7 2 P.B Empty Cont. Box
  • Schneider Electric XALD02H7 2 P.B Empty Cont. Box
  • Schneider Electric XALD02H7 2 P.B Empty Cont. Box
$38.20

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
