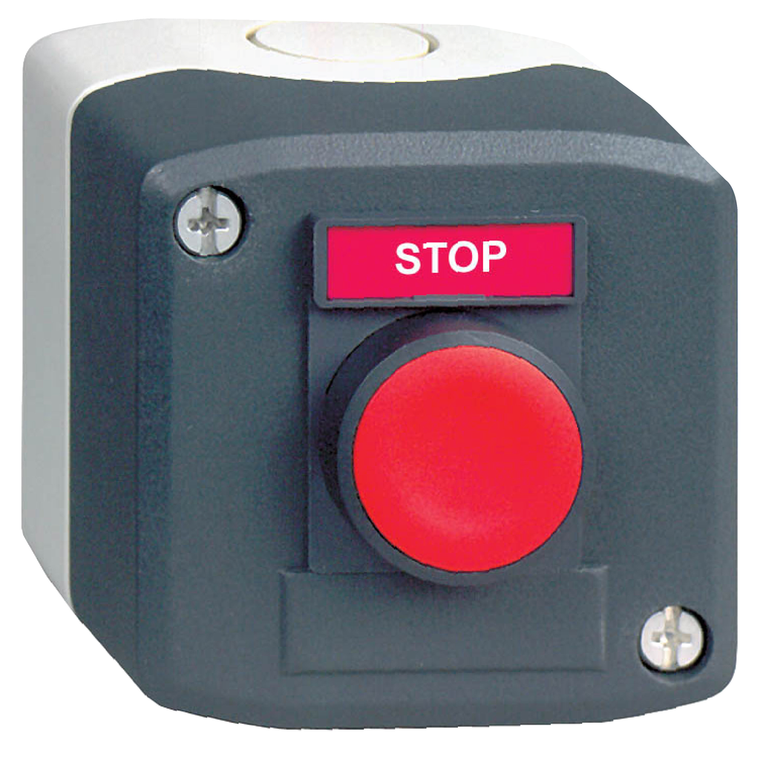

Schneider Electric XALD111H29H7 Control Station Xald Stop Function 1 Nc

SKU:

XALD111H29H7

UPC:

3.60648E+12

MPN:

Condition:

New

Protective Treatment:

TH

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Ambient Air Temperature For Operation:

-40-70 °C

Product Or Component Type:

complete control station

Reach Free Of Svhc:

Yes

Environmental Disclosure:

ENVPEP1806010EN

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Cable Entry:

1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm

Range Of Product:

Harmony XALD

Standards:

IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || JIS C8201-1

Rohs Exemption Information:

Yes

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Product Certifications:

CSA || UL Listed

China Rohs Regulation:

X

Operating Force:

3.5 N NC changing electrical state

Marking Location:

marking on legend holder

Sustainable Offer Status:

Green Premium product

Positive Opening:

with IEC 60947-5-1 appendix K

Colour Of Base Of Enclosure:

light grey RAL 7035)

Contact Operation:

slow-break

Mercury Free:

Yes

Toxic Heavy Metal Free:

Yes

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Warranty:

18 months

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Product Destination:

for XB5 Ø 22 mm control and signalling units

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Control Station Composition:

1 flush push-button, red 1 NC STOP

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Operator Profile:

1 flush push-button

Colour Of Cover:

dark grey RAL 7016)

Mechanical Durability:

5000000 cycles

Ambient Air Temperature For Storage:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Overvoltage Category:

class II IEC 60536

[Ie] Rated Operational Current:

6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Operators Description:

red ''STOP'' 1 NC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Material:

polycarbonate

Ik Degree Of Protection:

IK03 IEC 62262

Device Short Name:

XALD

Operating Travel:

1.5 mm NC changing electrical state) || 4.3 mm total travel)

Control Station Application:

stop function

Contacts Material:

silver alloy (Ag/Ni)

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Net Weight:

0.157 kg

Circularity Profile:

ENVEOLI1806010EN

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)
