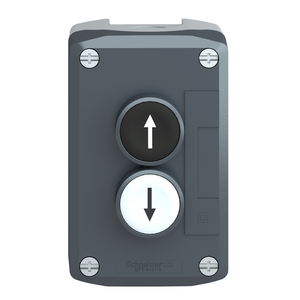

Schneider Electric XALD251H29H7 Control Station Xald Two Functions 2 No

Schneider Electric XALD251H29H7 Control Station Xald Two Functions 2 No

Schneider Electric
SKU:
XALD251H29H7
|
UPC:
3606480502705
$73.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

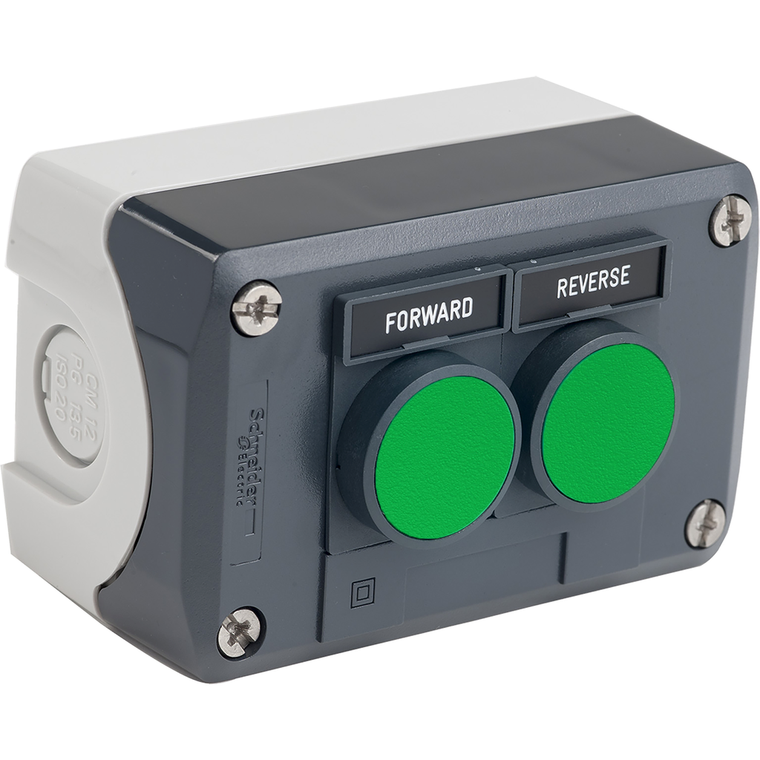

This Harmony XALD, is a complete ready to use control station for two functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. This control station provides a good resistance to chemical agents, thanks to its electrical double insulation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides a polycarbonate double insulated enclosure with a light grey (RAL 7035) base of enclosure and a dark grey (RAL 7016) cover. This control station is ideally suited for industrial, buildings, and infrastructure applications. This control station complies with IEC, UL, CSA standards, as well as CE marking. It is also UL listed and CSA certified. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads
Additional Information
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Product Or Component Type:
complete control station
[Ie] Rated Operational Current:
6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Ambient Air Temperature For Storage:
-40-70 °C
Control Station Application:
two functions
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Contacts Material:
silver alloy (Ag/Ni)
Colour Of Cover:
dark grey RAL 7016)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI1806010EN
Cable Entry:
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Ik Degree Of Protection:
IK03 IEC 62262
Standards:
UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C8201-1
China Rohs Regulation:
X
Mechanical Durability:
5000000 cycles
Vibration Resistance:
5 gn 12-500 Hz)IEC 60068-2-6
Toxic Heavy Metal Free:
Yes
Range Of Product:
Harmony XALD
Electrical Shock Protection Class:
class II IEC 60536
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP1806010EN
Material:
polycarbonate
Colour Of Base Of Enclosure:
light grey RAL 7035)
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Protective Treatment:
TH
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Device Short Name:
XALD
Product Certifications:
UL Listed || CSA
Product Destination:
for XB5 Ø 22 mm control and signalling units
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Ambient Air Temperature For Operation:
-40-70 °C
