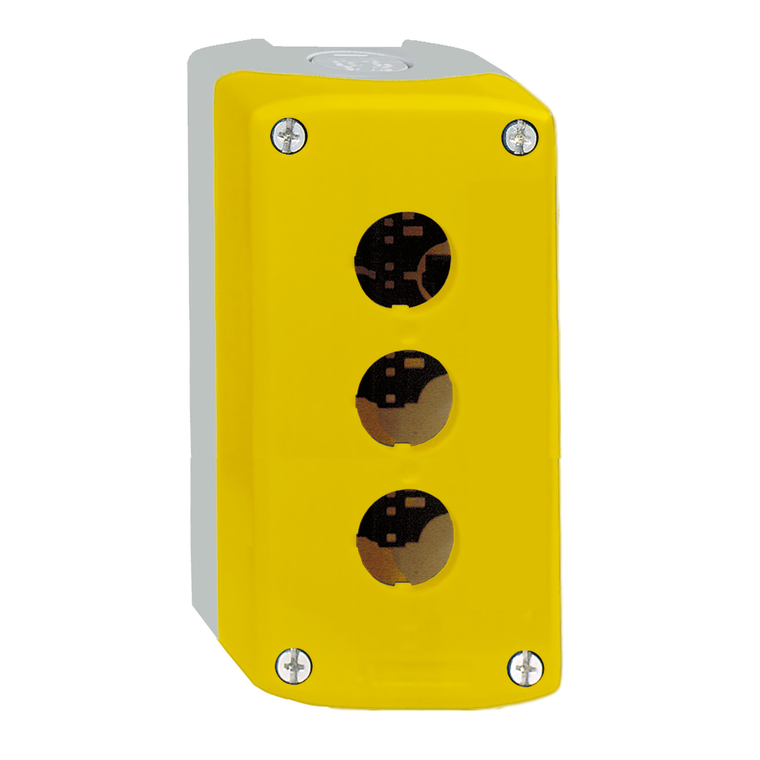

Schneider Electric XALK03H7 Empty

(No reviews yet) Write a Review

Write a Review

Schneider Electric XALK03H7 Empty

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XALK03H7

UPC:

3606480502729

MPN:

Condition:

New

Overvoltage Category:

class II IEC 60536

Standards:

EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || UL 508 || JIS C8201-1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Net Weight:

0.238 kg

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Rohs Exemption Information:

Yes

Colour Of Base Of Enclosure:

light grey RAL 7035)

Protective Treatment:

TH

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Assembly Style:

for customer assembly

Number Of Cut-Out:

3 cut-outs

Device Short Name:

XALK

Ambient Air Temperature For Storage:

-40-70 °C

Ik Degree Of Protection:

IK03 EN 50102

Cable Entry:

1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm

Reach Free Of Svhc:

Yes

Number Of Horizontal Rows:

1

Ambient Air Temperature For Operation:

-40-70 °C

Colour Of Cover:

yellow RAL 1021)

Group Of Product:

UL-CSA yellow

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

China Rohs Regulation:

X

Product Or Component Type:

empty control station

Product Certifications:

CSA || UL

Control Station Application:

emergency stop function || emergency switching off function

Range Of Product:

Harmony XALK

Number Of Vertical Rows:

1

Main Group:

1 cut-out

Electrical Composition Code:

SR1 || MF1 || SF1 || MR1

Material:

polycarbonate

Toxic Heavy Metal Free:

Yes

Mercury Free:

Yes

Product Destination:

for XB5 Ø 22 mm control and signalling units

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Of Block:

front mounting || rear mounting

Datasheet:

View
