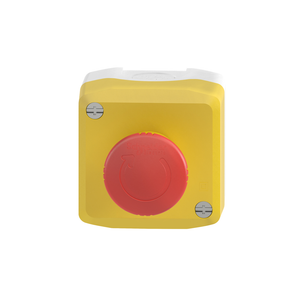

Schneider Electric XALK178E Emergency Stop Cont. Box

Schneider Electric XALK178E Emergency Stop Cont. Box

Schneider Electric
SKU:
XALK178E
|
UPC:
3389110113662
$147.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony XALK yellow control station for emergency stop function is ideal for your complete control station. It operates with turn to release mechanism and uses screw-clamp terminals. This control station with mushroom head push button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Additional Information
Ambient Air Temperature For Operation:
-40-70 °C
Circularity Profile:
ENVEOLI1806010EN
Contacts Material:
silver alloy (Ag/Ni)
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Tightening Torque:
0.8-1.2 N.m EN/IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Standards:
EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-5 || EN/ISO 13850 || EN/IEC 60947-5-1 || JIS C 4520 || IEC 60364-5-53 || EN/IEC 60947-1 || EN/IEC 60204-1
Operators Description:
red unmarked 1 NO + 1 NC
Colour Of Cover:
yellow RAL 1021)
Reach Free Of Svhc:
Yes
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Overvoltage Category:
class II IEC 60536
Product Destination:
for XB5 Ø 22 mm control and signalling units
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Offer Status:
Green Premium product
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-1
Device Short Name:
XALK
Cable Entry:
1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
Reset:
turn to release
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Rohs Exemption Information:
Yes
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Mechanical Durability:
300000 cycles
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Vibration Resistance:
5 gn 12-500 Hz)IEC 60068-2-6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Range Of Product:
Harmony XALK
China Rohs Regulation:
X
Warranty:
18 months
[Ui] Rated Insulation Voltage:
600 V 3)EN/IEC 60947-1
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ik Degree Of Protection:
IK03 EN 50102
Environmental Disclosure:
ENVPEP1806010EN
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Material:
polycarbonate
Control Station Application:
emergency switching off function || emergency stop function
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
Product Or Component Type:
complete control station
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Control Station Composition:
1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC unmarked
Contact Operation:
slow-break
Operating Force:
44 N NC + NO changing electrical state
Operator Profile:
1 mushroom head push-button
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
Protective Treatment:
TH
Net Weight:
0.194 kg
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Colour Of Base Of Enclosure:
light grey RAL 7035)
