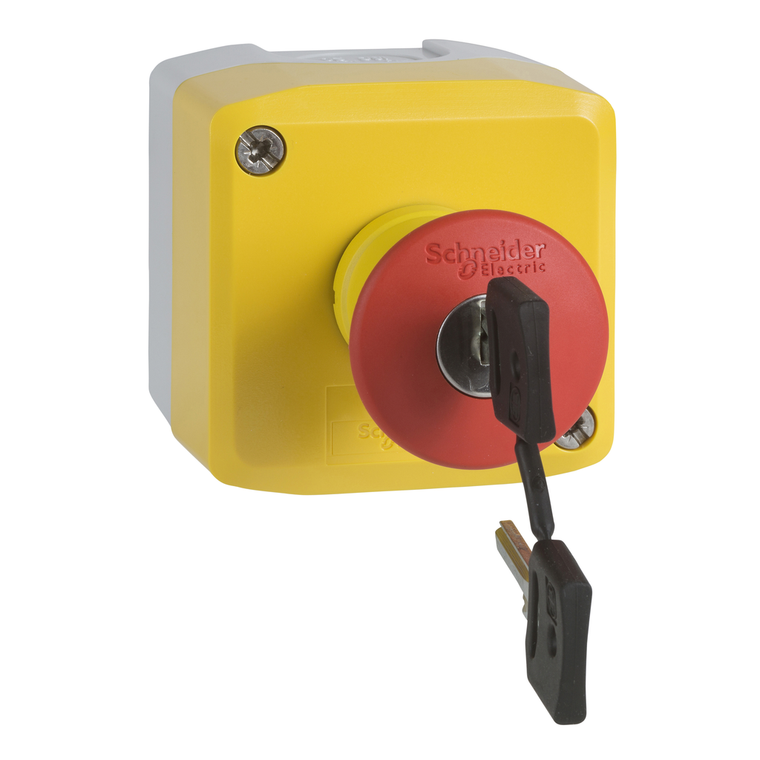

Schneider Electric XALK188H7 Emergency Stop Control Station, Ul

SKU:

XALK188H7

UPC:

3.60648E+12

MPN:

Condition:

New

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4

Material:

polycarbonate

Key Number:

455

Warranty:

18 months

Operator Profile:

1 mushroom head push-button

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operators Description:

red unmarked 1 NC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Protective Treatment:

TH

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Control Station Application:

emergency stop function || emergency switching off function

Product Or Component Type:

complete control station

Overvoltage Category:

class II IEC 60536

Rohs Exemption Information:

Yes

Colour Of Cover:

yellow RAL 1021)

Net Weight:

0.188 kg

Ambient Air Temperature For Operation:

-40-70 °C

Control Station Composition:

1 mushroom head Ø 40 mm push-button, red 1 NC unmarked

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Cable Entry:

1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm

Contacts Material:

silver alloy (Ag/Ni)

Circularity Profile:

ENVEOLI1806010EN

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Product Destination:

for XB5 Ø 22 mm control and signalling units

Range Of Product:

Harmony XALK

Reset:

key release

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP1806010EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Operating Travel:

1.5 mm NC changing electrical state) || 4.3 mm total travel)

Standards:

IEC 60947-5-1 || ISO 13850 || JIS C 4520 || IEC 60947-5-5 || IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || IEC 60364-5-53 || IEC 60947-1 || IEC 60204-1

Ambient Air Temperature For Storage:

-40-70 °C

Product Certifications:

UL Listed || CSA

Ik Degree Of Protection:

IK03 IEC 62262

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Mechanical Durability:

300000 cycles

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Contact Operation:

slow-break

Positive Opening:

with IEC 60947-5-1 appendix K

Device Short Name:

XALK

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Colour Of Base Of Enclosure:

light grey RAL 7035)

Operating Force:

44 N

Datasheet:

View
