Schneider Electric XAPA1100 Pushbutton Station
Schneider Electric
$110.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

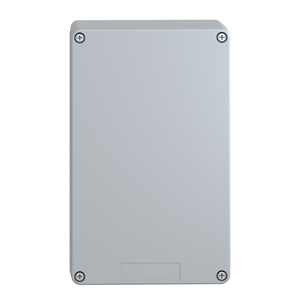

This is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4. This Harmony XAPA1100 is an empty plastic control station without opening and without hinges. It is impact resistant, dust resistant, water resistant and vibration resistant. This insulated enclosure is highly resistant to acids, bases, sea water, mineral salts, all solvants, petrol, diesel, oils and greases. Its protection index is IP65. It is made of glass-reinforced polyester material. It weighs 0.470Kg with dimensions 85mm wide, 146mm height, 87mm deep. It is compatible with Harmony XB4 range of control and signalling units.
- Cable Entry:
- undrilled
- Mercury Free:
- Yes
- Product Or Component Type:
- empty control station without hinges
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.47 kg
- Range Of Product:
- Harmony XAP
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP2111017EN
- Sustainable Offer Status:
- Green Premium product
- Usable Depth:
- 83 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Mounting:
- flush
- Product Front Plate Size:
- 85 x 146 mm
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Number Of Cut-Out:
- undrilled
- Warranty:
- 18 months
- Protective Treatment:
- TC || TH
- Resistance To Chemical Agents:
- high resistant to acids || high resistant to all solvents || high resistant to bases || high resistant to diesel || high resistant to mineral salts || high resistant to oils and greases || high resistant to petrol || high resistant to sea water
- Device Short Name:
- XAPA
- Fire Resistance:
- 850 °C NF C 20-455 || 960 °C IEC 92
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP65 IEC 60529 || IP69 NF C 20-010 || IP69K
- Circularity Profile:
- N/A
- Colour Of Cover:
- grey
- Flame Retardance:
- M3 conforming to CSTB || VO conforming to UL 94
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Material:
- glass reinforced polyester
- Colour Of Base Of Enclosure:
- grey
- Overvoltage Category:
- class II IEC 60536 || class II NF C 20-030
- Datasheet:
- View
