Schneider Electric XAPA2100 Pushbutton Station
Schneider Electric
$180.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XAPA2100 Pushbutton Station

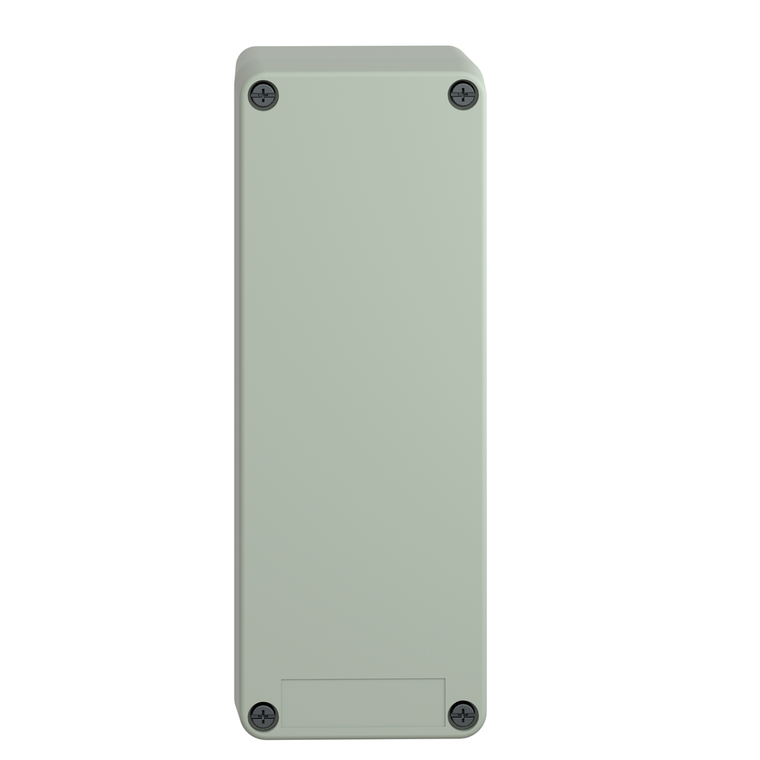

This is part of the range Harmony XAP, XB2 SL metal enclosures for Harmony XB4. This Harmony XAPA2100 is an empty plastic control station without opening and without hinges. It is impact resistant, dust resistant, water resistant and vibration resistant. This insulated enclosure is highly resistant to acids, bases, sea water, mineral salts, all solvants, petrol, diesel, oils and greases. Its protection index is IP65. It is made of glass-reinforced polyester material. It weighs 0.600Kg with dimensions 85mm wide, 226mm height, 87mm deep. It is compatible with Harmony XB4 range of control and signalling units.
- Circularity Profile:
- N/A
- Material:
- glass reinforced polyester
- Colour Of Cover:
- grey
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- empty control station without hinges
- Warranty:
- 18 months
- Product Front Plate Size:
- 85 x 226 mm
- Device Mounting:
- flush
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536 || class II NF C 20-030
- Protective Treatment:
- TH || TC
- Flame Retardance:
- M3 conforming to CSTB || VO conforming to UL 94
- Ip Degree Of Protection:
- IP65 IEC 60529 || IP69 NF C 20-010 || IP69K
- Number Of Cut-Out:
- undrilled
- Fire Resistance:
- 850 °C NF C 20-455 || 960 °C IEC 92
- Device Short Name:
- XAPA
- Environmental Disclosure:
- ENVPEP2111017EN
- Range Of Product:
- Harmony XAP
- Net Weight:
- 0.6 kg
- Sustainable Offer Status:
- Green Premium product
- Resistance To Chemical Agents:
- high resistant to acids || high resistant to all solvents || high resistant to bases || high resistant to diesel || high resistant to mineral salts || high resistant to oils and greases || high resistant to petrol || high resistant to sea water
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cable Entry:
- undrilled
- Usable Depth:
- 83 mm
- Colour Of Base Of Enclosure:
- grey
- China Rohs Regulation:
- X
- Catalog:
- View
- Datasheet:
- View
