Schneider Electric XAPA3116 Pushbutton Station

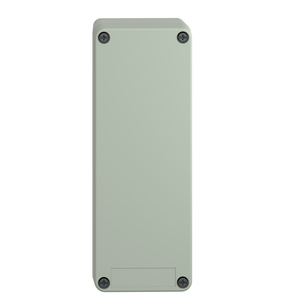

This Harmony XAPA3116 is an empty control station plastic 16 openings in 4 columns. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.82 kg
- Mercury Free:
- Yes
- Colour Of Cover:
- grey
- Range Of Product:
- Harmony XAP
- Circularity Profile:
- N/A
- Toxic Heavy Metal Free:
- Yes
- Number Of Cut-Out:
- 16 cut-outs
- Cable Entry:
- undrilled
- Flame Retardance:
- M3 conforming to CSTB || VO conforming to UL 94
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP65 IEC 60529 || IP69 NF C 20-010 || IP69K
- Fire Resistance:
- 850 °C NF C 20-455 || 960 °C IEC 92
- Protective Treatment:
- TH || TC
- Ambient Air Temperature For Storage:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536 || class II NF C 20-030
- Product Destination:
- for à 22 mm control and signalling units
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP2111017EN
- Product Or Component Type:
- empty control station without hinges
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Resistance To Chemical Agents:
- high resistant to acids || high resistant to all solvents || high resistant to bases || high resistant to diesel || high resistant to mineral salts || high resistant to oils and greases || high resistant to petrol || high resistant to sea water
- Colour Of Base Of Enclosure:
- grey
- Usable Depth:
- 83 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Mounting:
- flush
- Reach Free Of Svhc:
- Yes
- Product Front Plate Size:
- 151 x 241 mm
- Number Of Vertical Rows:
- 4
- Device Short Name:
- XAPA
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Material:
- glass reinforced polyester
- China Rohs Regulation:
- X
- Datasheet:
- View
