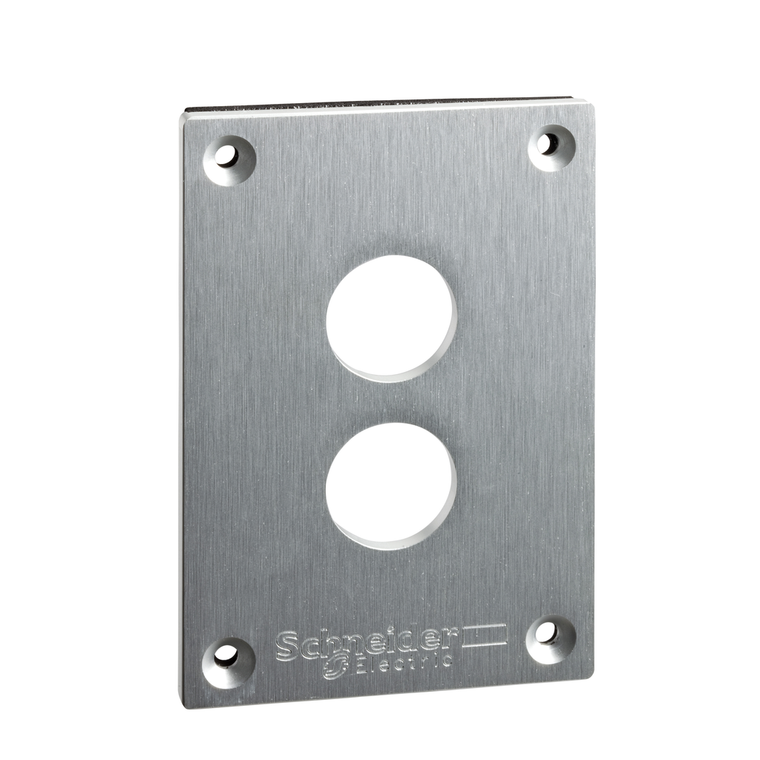

Schneider Electric XAPE302 2 Holes Front Plate
Schneider Electric
$60.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Schneider Electric Harmony XAPE enclosure plate with fixing screw has 2 cut-out for 22mm control and signaling units. It has a rectangle shape and it is made of anodized aluminum alloy. It uses flush mounting. This 2 cut-out drilled front plate with fixing screw enables protection to your control units. It uses anodized aluminum alloy material which allows it to have good resistance to chemical agents. It is compatible with Harmony 22mm control and signaling units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP657, making it ideal for operation in harsh environments. Impact- and stain resistant enclosure for a sustained appearance despite rough usage conditions. No need to damage your machine or system with multiple 22mm hole, thus avoiding common issues like edge corrosion. Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
- Ip Degree Of Protection:
- IP65 IEC 60529 || IP657 NF C 20-010
- Product Or Component Type:
- front plate with fixing screws
- Environmental Disclosure:
- ENVPEP2111017EN
- Material:
- anodised aluminium
- Ambient Air Temperature For Storage:
- -40-70 °C
- Overvoltage Category:
- class I IEC 60536 || class I NF C 20-030
- Rohs Exemption Information:
- Yes
- Device Mounting:
- flush
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -25-70 °C
- Device Short Name:
- XAPE
- Toxic Heavy Metal Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Front Plate Size:
- 72 x 105 mm
- Resistance To Chemical Agents:
- good resistant to acetone || good resistant to alcohols || good resistant to chloride and fluoride solvents || good resistant to diluted mineral acids || good resistant to oils and petrol || good resistant to organic acids || good resistant to salts
- Net Weight:
- 0.075 kg
- Product Destination:
- for à 22 mm control and signalling units
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Number Of Cut-Out:
- 2 cut-outs
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XAP
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Protective Treatment:
- TC || TH
- Datasheet:
- View
