Schneider Electric XARS12D18W System Disp.4P Aux.18R Cable

Schneider Electric XARS12D18W System Disp.4P Aux.18R Cable

Schneider Electric
SKU:
XARS12D18W
|
UPC:
3606480610332
Availability:
Contact us to confirm availability and lead times.
$1,897.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

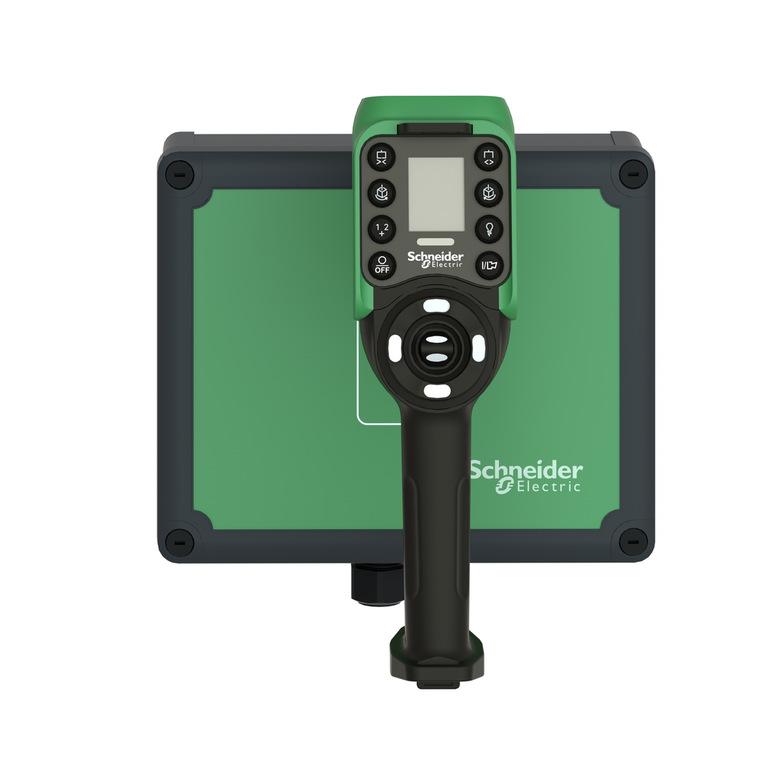

This wireless remote control system is part of the range wireless remote control system Harmony eXLhoist. It is a combination of remote control device (or transmitter ZART12D) and base station (or receiver ZARB18W) which transmits commands and information from the operator to the machine and vice versa by wireless transmission. The XARS system offers movement in 3 directions (for example hoist, bridge, and trolley) at 2 speeds (low and high) for each movement. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. Its degree of protection is IP 65 for the base station and IP 65 and NEMA 4 for the wireless control device. It weighs 2.1kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
Additional Information
Operating Distance:
100 m in free air
Standards:
IEC 60204-1 safety || ISO 13849-1 safety || IEC 62061 safety || IEC 61508 safety || ISO 13850 safety || IEC 60204-32 hoisting applications || ETSI EN 301 489-1 radio || ETSI EN 301 489-3 radio || ETSI EN 301 489-17 radio || ETSI EN 300 440-2 radio ||
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Harmony eXLhoist
Radio Agreement:
FCC || ANATEL || ARIB || SRRC || ICASA || RSS
Electromagnetic Compatibility:
resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 || resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2 || resistance to radiated electromagnet
Mercury Free:
Yes
Communication Network Type:
wireless bluetooth low energy
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Specific Application:
material handling || hoisting applications
Control Station Application:
stop function SIL 2 maximum can reach PL d/category 3)IEC 62061 || stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061 || emergency stop function SIL 3 maximum
Transmission Frequency:
2.4 GHz
Device Short Name:
XARS
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Control Station Type:
wireless
Product Or Component Type:
control station
Kit Composition:
remote control || base station
Environmental Disclosure:
ENVPEP1403029EN
Number Of Channels:
50
Product Certifications:
CE || UL || CSA || C-tick || JIS || KC || EAC
Relative Humidity:
0-95 % -20-45 °C storage
Circularity Profile:
ENVEOLI1403029EN
Cable Entry:
cable gland
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Brochure:
View
Datasheet:
View
