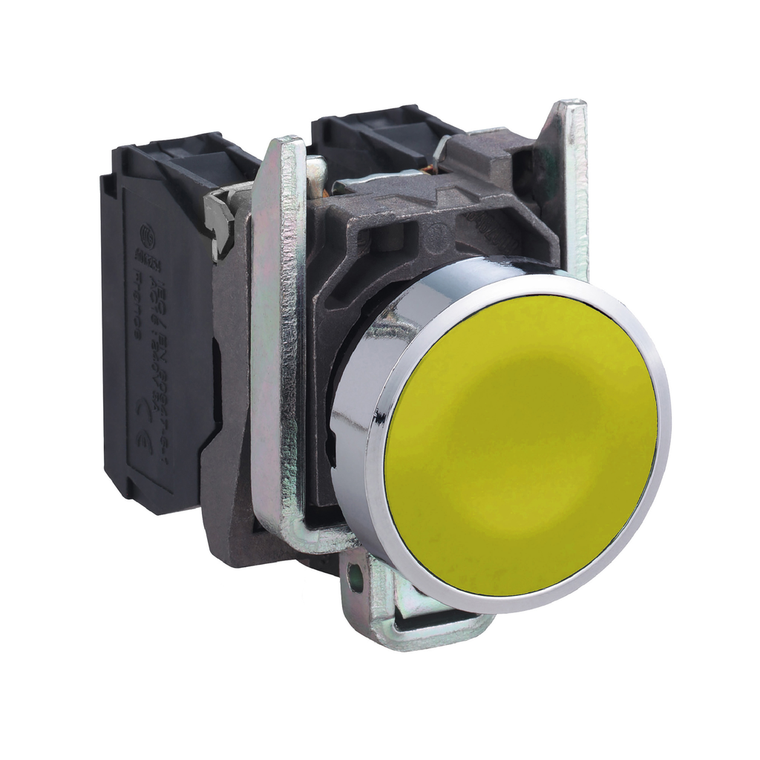

Schneider Electric XB4BA55 Pushbutton, Yellow, 1No 1Nc Contact

SKU:

XB4BA55

UPC:

3606480502323

MPN:

Condition:

New

Mechanical Durability:

10000000 cycles

Circularity Profile:

ENVEOLI1808008EN

Positive Opening:

with IEC 60947-5-1 appendix K

Sustainable Offer Status:

Green Premium product

Terminals Description Iso N°1:

(11-12)NC

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Height:

47 mm

Environmental Disclosure:

ENVPEP1808008EN

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Mercury Free:

Yes

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Bezel Material:

chromium plated metal

Ambient Air Temperature For Storage:

-40-70 °C

Device Short Name:

XB4

Warranty:

18 months

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ik Degree Of Protection:

IK06 IEC 50102

Width:

30 mm

Contacts Usage:

standard contacts

Range Of Product:

Harmony XB4

Product Certifications:

CSA || GL || BV || DNV || LROS (Lloyds register of shipping) || UL Listed

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

China Rohs Regulation:

X

Contacts Material:

silver alloy (Ag/Ni)

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Operating Force:

3.5 N NC changing electrical state || 3.8 N NO changing electrical state

Contact Operation:

slow-break

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Toxic Heavy Metal Free:

Yes

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Product Or Component Type:

push-button

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1

Device Presentation:

complete product

Overvoltage Category:

class I IEC 60536

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Net Weight:

0.08 kg

Fixing Collar Material:

zamak

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Head Type:

standard

Depth:

52 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Diameter:

22 mm

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Operator Profile:

yellow flush, unmarked

Reach Free Of Svhc:

Yes

Protective Treatment:

TH

Sale Per Indivisible Quantity:

1

Contacts Type And Composition:

1 NO + 1 NC

Shape Of Signaling Unit Head:

round

Type Of Operator:

spring return

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1
