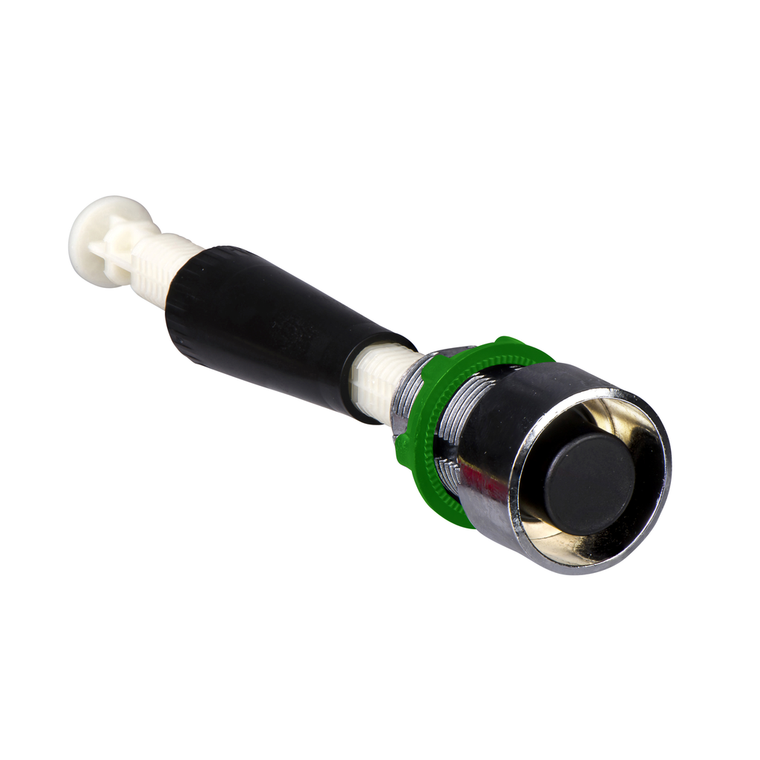

Schneider Electric XB4BA922 Reset Xb4B Pushbutton
Schneider Electric
$45.10
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB4BA922 Reset Xb4B Pushbutton
This manual overload reset pushbutton provides a complete interface to your machines with a single panel cut-out Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 22mm diameter cut-outs High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
- Product Or Component Type:
- manual overload reset push-button
- Operating Travel:
- 14 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- XB4
- Mounting Diameter:
- 22 mm
- Protective Treatment:
- TH
- Standards:
- EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-1
- Net Weight:
- 0.071 kg
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- black flush, unmarked
- Range Of Product:
- Harmony XB4
- Bezel Material:
- chromium plated metal
- Electrical Shock Protection Class:
- class I IEC 60536
- China Rohs Regulation:
- X
- Head Type:
- standard
- Product Certifications:
- BV || CSA || UL Listed || GL || DNV || LROS (Lloyds register of shipping)
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Ik Degree Of Protection:
- IK03 IEC 50102
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP1808008EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Mechanical Durability:
- 5000000 cycles
- Toxic Heavy Metal Free:
- Yes
- Activating Distance:
- 130-257 mm
- Fixing Collar Material:
- zamak
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
