Schneider Electric XB4BA941 Reset Xb4B Pushbutton
Schneider Electric
$36.10
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

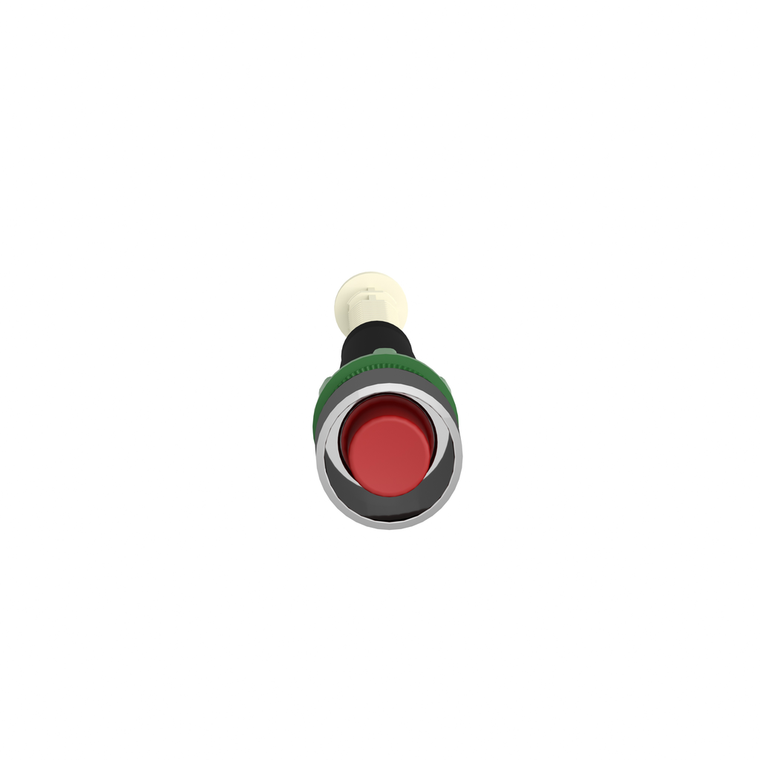

Schneider Electric XB4BA941 Reset Xb4B Pushbutton
This manual overload reset with operating travel 14 mm and activating distance 30 to 130 push-button provides a complete button interface to your machines with a single panel cut-out It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections High performance International standards & certifications ( Marine certification, IP66, Type 13 and 4X)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mounting Diameter:
- 22 mm
- Rohs Exemption Information:
- Yes
- Device Short Name:
- XB4
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1808008EN
- Net Weight:
- 0.058 kg
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mechanical Durability:
- 5000000 cycles
- Ip Degree Of Protection:
- IP66 IEC 60529
- Sustainable Offer Status:
- Green Premium product
- Standards:
- IEC 60947-5-5 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1
- Range Of Product:
- Harmony XB4
- Protective Treatment:
- TH
- Electrical Shock Protection Class:
- class I IEC 60536
- Reach Free Of Svhc:
- Yes
- Activating Distance:
- 30-130 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Or Component Type:
- manual overload reset push-button
- Bezel Material:
- chromium plated metal
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Certifications:
- GL || UL Listed || DNV || LROS (Lloyds register of shipping) || CSA || BV
- Environmental Disclosure:
- ENVPEP1808008EN
- China Rohs Regulation:
- X
- Operating Travel:
- 14 mm
- Head Type:
- standard
- Fixing Collar Material:
- zamak
- Warranty:
- 18 months
- Operator Profile:
- red flush, unmarked
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
